SELECT A DIAGRAM

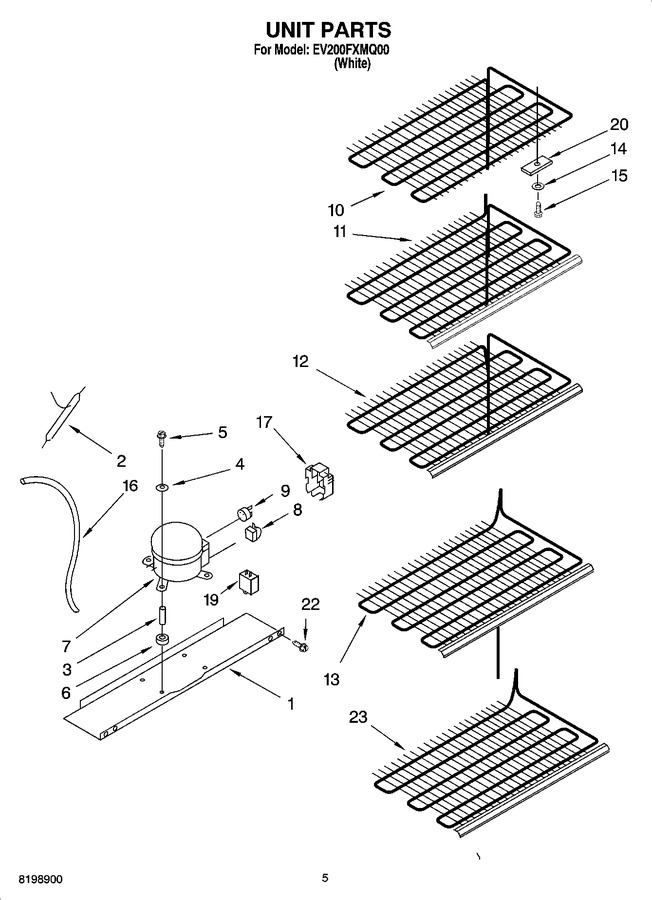

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357095		Pan, Compressor Mounting		Appelez-nous	-
2	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
3	4356846		Sleeve, Grommet				$ 15.00
4	4356847		Washer		Appelez-nous	-
5	4356852		Screw, Compressor Mounting				$ 6.57
6	4356335		Grommet		Appelez-nous	-
7	W10309994		Compressor (includes Items 6, 8, 9, & 17)   (Replaces: 4356775)			Immediately	$ 643.55
8	4356738		Relay				$ 53.17
9	2-34286-021		Overload   (Replaces: 4356776)				$ 144.33
10	4390872		Evaporator Top		Appelez-nous	-
11	4390873		Evaporator Shelf		Appelez-nous	-
12	4390705		Evaporator Shelf		Appelez-nous	-
13	4390706		Evaporator Shelf		Appelez-nous	-
14	4357057		Washer		Appelez-nous	-
15	WP3-24004-109		Evaporator, Mounting Screw   (Replaces: 4357223)				$ 9.14
16	4390809		Heat Exchanger		Appelez-nous	-
17	4356777		Cover		Appelez-nous	-
19	3-35956-013		Capacitor   (Replaces: 4390674)				$ 121.12
20	4356854		Clamp		Appelez-nous	-
22	WP3-24838-048		Screw   (Replaces: 4356820)				$ 8.33
23	4390874		Evaporator Shelf, Bottom		Appelez-nous	-
