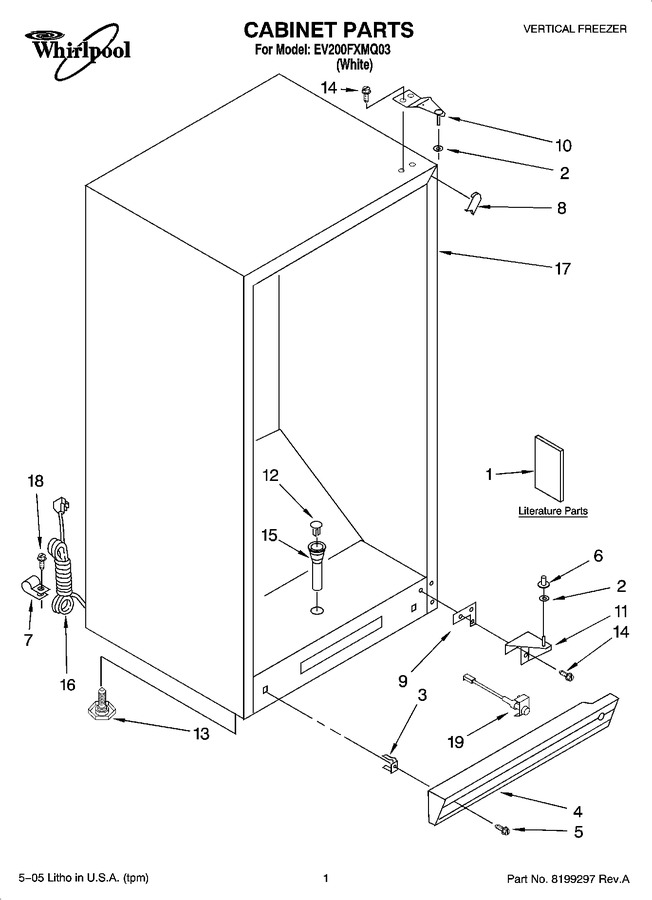

01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390916 | Owners Manual |
|
- | |||||
| 1 | 4390699 | Energy Label |
|
- | |||||
| 2 | W10851331 | Washer, Door Spacer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 3 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 11.50 | ||||
| 4 | 8210270 | Grille |
|
- | |||||
| 5 | 4357139 | Screw |
|
$ 6.57 | |||||
| 6 | 4390659 | Bushing, Hinge |
|
- | |||||
| 7 | 488946 | Clamp, Tube (Replaces: 4356643) |
|
$ 21.47 | |||||
| 8 | 8210227 | Corner Filler (2) |
|
- | |||||
| 9 | 4356828 | Shim, Bottom |
|
$ 12.40 | |||||
| 10 | 4390673 | Hinge, Top |
|
- | |||||
| 11 | 8210223 | Hinge, Bottom |
|
- | |||||
| 12 | 4357019 | Drain Plug |
|
- | |||||
| 13 | W11117769 | Leg, Leveler (Replaces: 4390866) |
|
Immediately | $ 19.37 | ||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 15 | 4357269 | Grommet, Drain |
|
- | |||||
| 16 | 4390696 | Power Cord |
|
$ 90.49 | |||||
| 17 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 18 | 4357139 | Screw |
|
$ 6.57 | |||||
| 19 | 4390905 | Power Light Assembly |
|
- |
