SELECT A DIAGRAM

01 - Cabinet Parts

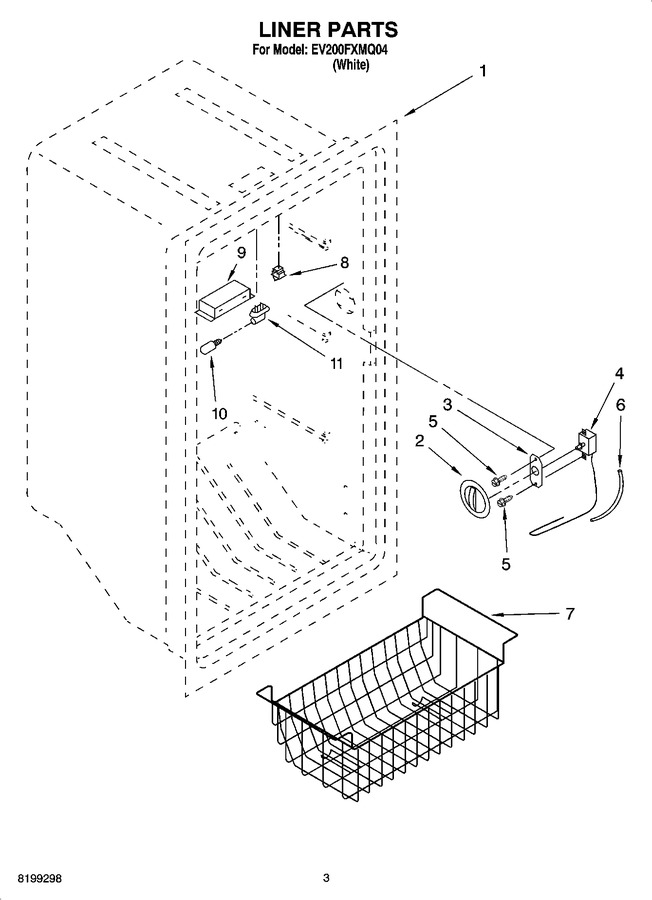

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	4390619		Control Knob		Appelez-nous	-
3	1-81154		Control Plate   (Replaces: 4357041)				$ 15.00
4	4390620		Thermostat		Appelez-nous	-
5	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
6	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
7	4390698		Basket		Appelez-nous	-
8	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
9	4390626		Bracket		Appelez-nous	-
10	W10873798		Bulb, Light   (Replaces: 4356311)			Immediately	$ 14.62
11	4356874		Socket, Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
