SELECT A DIAGRAM

01 - Cabinet, Lit/optional


02 - Liner

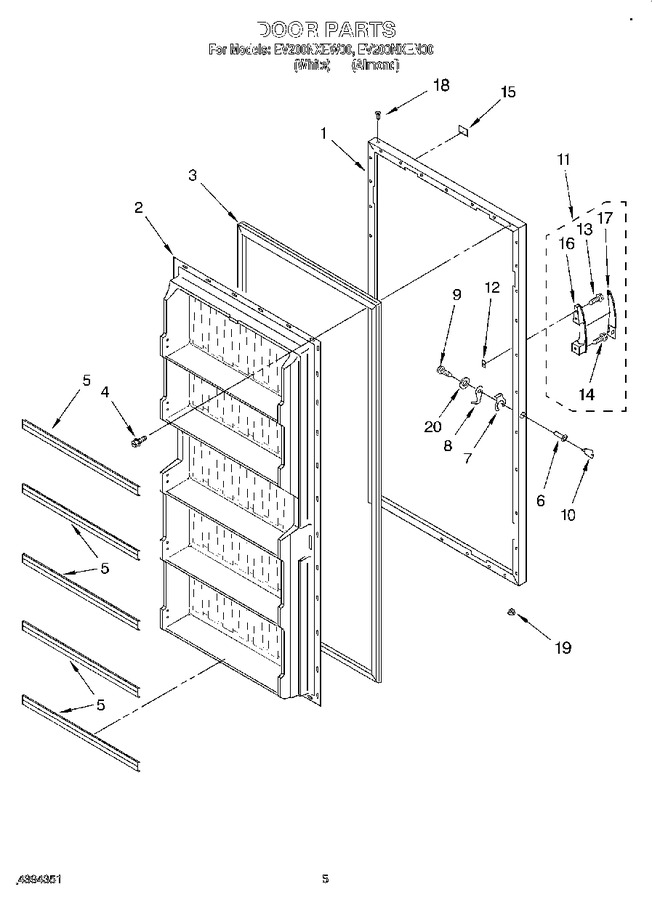

03 - Door


04 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4357150		Exterior Door (almond (includes Insulation))		Appelez-nous	-
1	4357149		Exterior Door (white)		Appelez-nous	-
2	4357091		Interior Panel		Appelez-nous	-
3	WP4-81049-001		Door Gasket (almond Model)   (Replaces: 4357112)				$ 382.56
3	WP4-81049-001		Door Gasket (white Model)   (Replaces: 4357120)				$ 382.56
4	WP489478		Screw   (Replaces: 4356810)				$ 8.18
5	4356961		Trim Shelf		Appelez-nous	-
6	4357145		Lock, Body				$ 27.79
7	4356842		Spring, Clip Mounting				$ 12.24
8	3-35284-001		Lock, Bolt   (Replaces: 4356841)				$ 28.49
9	WP489478		Screw, Lock Bolt   (Replaces: 4356843)				$ 8.18
10	WP4356840		Key   (Replaces: 4356840)				$ 11.28
11	4357143		Handle Kit (includes Items 13, 14, 16 & 17) (white)		Appelez-nous	-
11	4357144		Handle Kit (includes Items 13, 14, 16 & 17) (almond)		Appelez-nous	-
12	4356812		Anchor, Screw		Appelez-nous	-
13	WP3-24004-109		Screw   (Replaces: 4390510)				$ 9.14
14	W10709795		Screw   (Replaces: 4390511)				$ 13.79
15	4356940		Nameplate		Appelez-nous	-
16	4356895		Handle		Appelez-nous	-
17	4390553		Insert, Handle (almond)		Appelez-nous	-
17	4357036		Insert, Handle (white)		Appelez-nous	-
18	4356811		Bushing, Hinge		Appelez-nous	-
19	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 11.34
20	4356992		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
