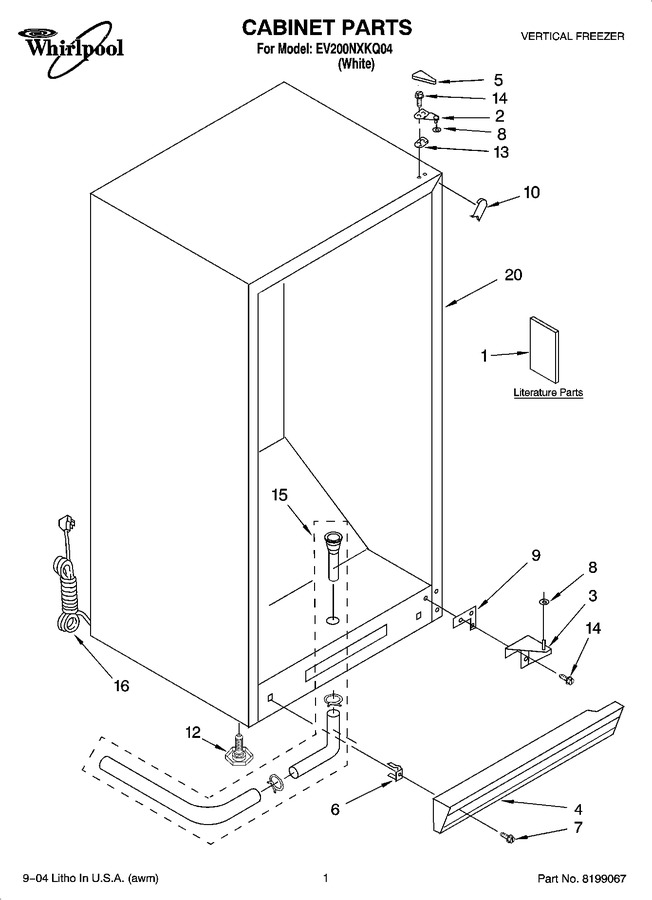

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts, Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2300214 | Owners Manual |
|
- | |||||
| 1 | 2218025 | Energy Label |
|
- | |||||
| 2 | 4357052 | Top, Hinge (white) |
|
- | |||||
| 3 | 4357250 | Bottom Hinge (white) |
|
- | |||||
| 4 | 4357261 | Grille (white) |
|
- | |||||
| 5 | 4357279 | Hinge Cover |
|
$ 46.56 | |||||
| 6 | 1-80247-101 | Clip, Grille (Replaces: 4356803) |
|
Immediately | $ 11.50 | ||||
| 7 | 4357139 | Screw |
|
$ 6.57 | |||||
| 8 | W10851331 | Washer (Replaces: 4390520) |
|
$ 10.57 | |||||
| 9 | 4356828 | Shim, Bottom |
|
$ 12.40 | |||||
| 10 | 8210227 | Corner Filler (2) |
|
- | |||||
| 12 | W11117769 | Leg, Leveler (Replaces: 4390866) |
|
Immediately | $ 19.37 | ||||
| 13 | 4390489 | Shim |
|
$ 7.30 | |||||
| 14 | WP8204624 | Screw (Replaces: 4356830) |
|
$ 17.48 | |||||
| 15 | 4390871 | Hose Drain Kit |
|
- | |||||
| 16 | 4390693 | Power Cord |
|
- | |||||
| 20 | N/A | Cabinet (not A Serviceable Part) |
|
- |
