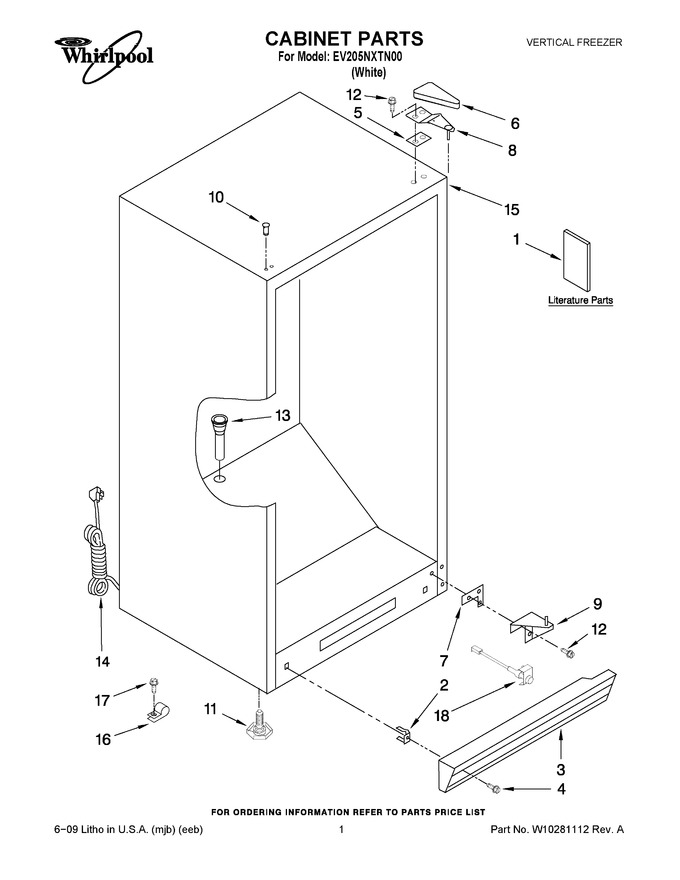

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10243404		Energy Label/tag		Appelez-nous	-
1	8210432		Owners Manual		Appelez-nous	-
2	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
3	W10260289		Grille		Appelez-nous	-
4	WP489478		Screw   (Replaces: 4357243)				$ 8.18
5	4390489		Shim, Hinge				$ 7.30
6	W10254179		Cover, Hinge		Appelez-nous	-
7	4390489		Shim, Bottom				$ 7.30
8	W10260541		Hinge, Top				$ 51.02
9	W10260542		Hinge, Bottom		Appelez-nous	-
10	WP2189000		Plug (white)   (Replaces: 4390596)			Immediately	$ 7.77
11	WP3-82710-001		Leveler Leg Kit   (Replaces: W10177675)			Immediately	$ 20.32
12	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
13	W10164544		Grommet, Drain		Appelez-nous	-
14	W10243406		Cord, Power (w/wiring Harness)		Appelez-nous	-
15	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
16	4357159		Clamp, Tube		Appelez-nous	-
17	WP489478		Screw   (Replaces: 4357243)				$ 8.18
18	4390905		Light, Power Warn		Appelez-nous	-
