SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

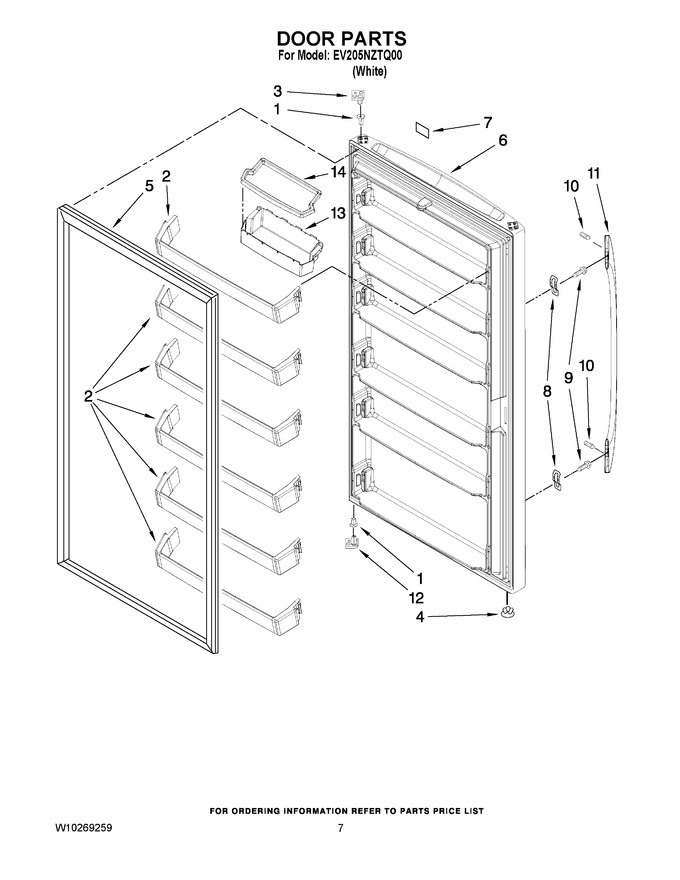

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390731 | Bushing, Hinge |
|
$ 19.69 | |||||
| 2 | WP4-65451-001 | Rail, Door (6) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 3 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 5 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 382.94 | |||||
| 6 | W10295702 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 8 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 36.55 | |||||
| 9 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 10 | 8533920 | Screw |
|
$ 5.27 | |||||
| 11 | 2313345W | Handle |
|
- | |||||
| 12 | 8210400 | Stop, Door (lower) |
|
- | |||||
| 13 | WP4-82576-001 | Bin, Body (Replaces: W10164621) |
|
$ 83.29 | |||||
| 14 | W10164622 | Bin, Cover |
|
- |
