SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Unit Parts

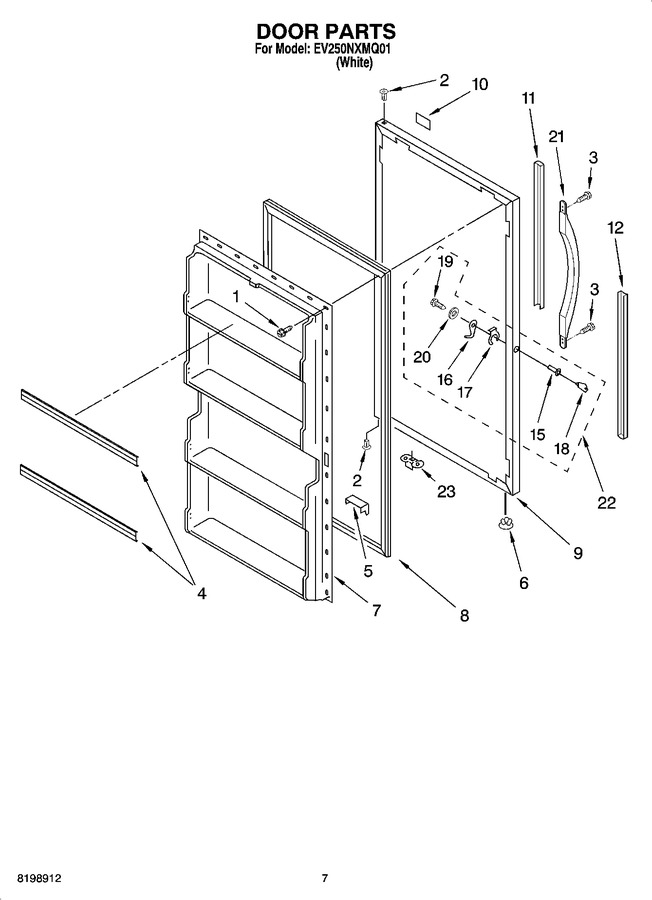

04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390598		Screw   (Replaces: 4357290)				$ 22.04
2	4390659		Hinge, Bushing		Appelez-nous	-
3	WP489491		Screw   (Replaces: 4390669)				$ 7.30
4	W10450648		Door Shelf Trim (4)   (Replaces: 4390805)		Appelez-nous	-
5	4356893		Foam Block		Appelez-nous	-
6	3-24898-007		Vent Plug   (Replaces: 4356894)				$ 11.34
7	4390802		Interior Door		Appelez-nous	-
8	WP4-81679-001		Door Gasket   (Replaces: 4390803)				$ 281.40
9	4390801		Door, Exterior		Appelez-nous	-
10	4390670		Nameplate		Appelez-nous	-
11	4390856		Trim, Handle (top)		Appelez-nous	-
12	4390857		Trim, Handle (bottom)		Appelez-nous	-
15	4357145		Lock, Body   (Replaces: 4356839)				$ 27.79
16	4357289		Lock, Bolt				$ 22.23
17	4356842		Spring Clip				$ 12.24
18	WP4356840		Key   (Replaces: 4356840)				$ 11.28
19	WP489478		Screw   (Replaces: 4356843)				$ 8.18
20	4356992		Washer		Appelez-nous	-
21	3-82596-002		Handle Assembly   (Replaces: 4390747)				$ 265.43
22	4357145		Lock Assembly (includes Items 15, 16, 17, 18, 19 & 20)				$ 27.79
23	4390695		Door Stop		Appelez-nous	-
	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
	N/A		Miscellaneous		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
