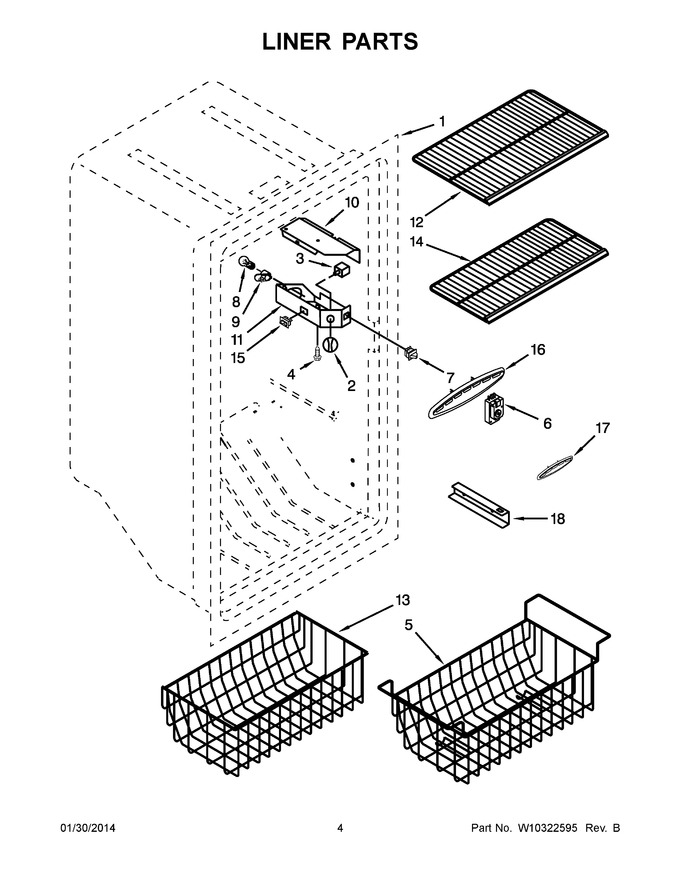

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 28.67
3	WP4-83053-002		Thermostat   (Replaces: 4-83053-002)				$ 244.50
4	WPW10068250		Screw   (Replaces: 4357042)				$ 4.07
5	4390799		Basket, Wire		Appelez-nous	-
6	WP3-81329		Timer, Defrost   (Replaces: 4357124)			Immediately	$ 189.66
7	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 37.23
8	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
9	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 107.36
10	8210349		Lens, Light				$ 33.01
11	W10164503		Box, Control		Appelez-nous	-
12	WP4390850		Wire Shelf, Upper   (Replaces: 4390850)				$ 247.78
13	4390793		Basket, Wire		Appelez-nous	-
14	4-82318-001		Shelf, Lower Wire   (Replaces: 8210369)		Appelez-nous	-
15	W10164514		Switch, Alarm		Appelez-nous	-
16	W10258753		Air Diffuser Upper		Appelez-nous	-
17	4-82573-002		Diffuser   (Replaces: W10258754)		Appelez-nous	-
18	4390820		Rail, Basket (left)				$ 77.44
18	4390819		Rail, Basket (right)		Appelez-nous	-
