SELECT A DIAGRAM

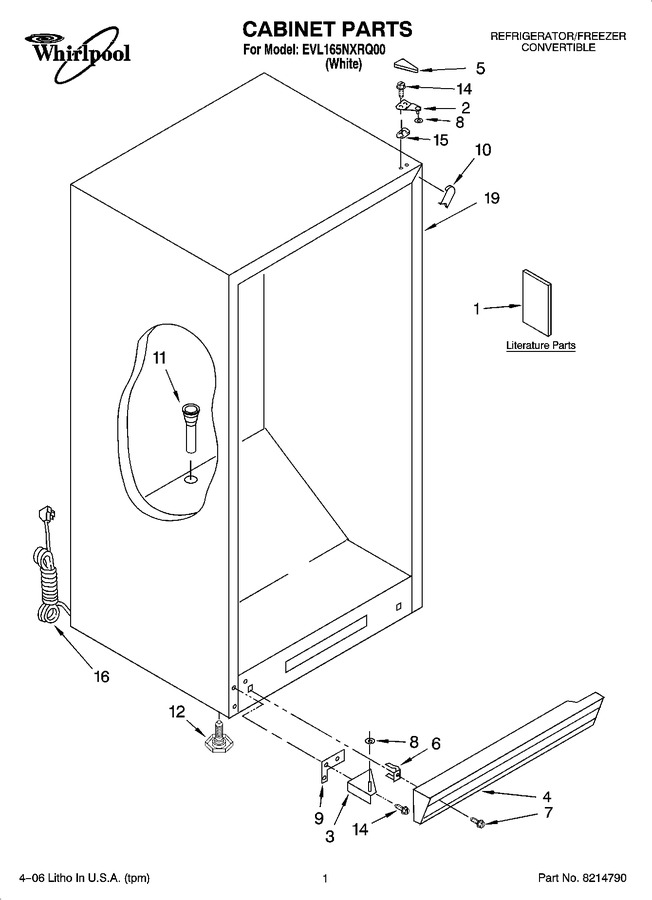

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210425		Energy Guide/tag		Appelez-nous	-
1	W10128851		Owners Manual		Appelez-nous	-
2	2-81016-105		Hinge, Top   (Replaces: 8210222)				$ 43.24
3	8210238		Hinge, Bottom				$ 44.66
4	WP4-60461-005		Grille (includes 6 & 7) (white)   (Replaces: 8210290)				$ 117.48
5	4357279		Hinge Cover (white)				$ 46.56
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4357243)				$ 8.18
8	W10851331		Washer   (Replaces: 4390520)				$ 10.57
9	4390489		Shim, Bottom				$ 7.30
10	8210227		Filler, Corner (white)		Appelez-nous	-
11	4357268		Grommet, Drain		Appelez-nous	-
12	W11117769		Leg, Leveler   (Replaces: 4390866)			Immediately	$ 19.37
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
15	4390489		Shim, Hinge				$ 7.30
16	4390696		Power Cord				$ 90.49
