01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts

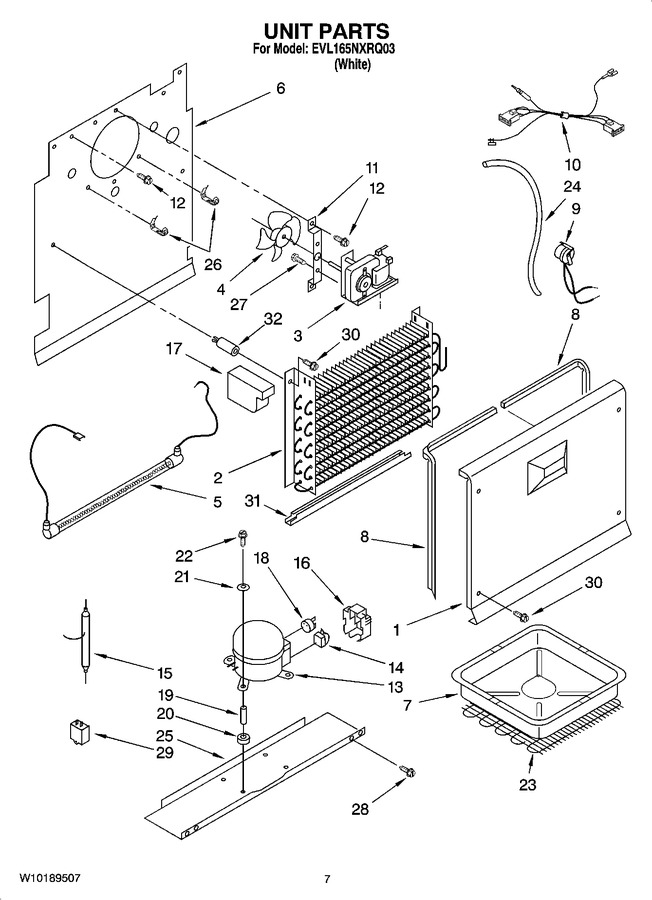

04 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390662 | Cover, Evaporator |
|
$ 147.35 | |||||
| 2 | WP4-81546 | Evaporator (Replaces: 4357244) |
|
$ 449.41 | |||||
| 3 | WP3-60336-001 | Motor, Fan (Replaces: 4390914) |
|
Immediately | $ 339.78 | ||||
| 4 | WPW10445742 | Fan Blade (Replaces: 4390912) |
|
Immediately | $ 10.55 | ||||
| 5 | 8201749 | Heater, Defrost (Replaces: 4390913) |
|
$ 224.34 | |||||
| 6 | 4357123 | Plate, Evaporator Mount |
|
- | |||||
| 7 | W10164623 | Drain Pan |
|
- | |||||
| 8 | 4390664 | Gasket, Evaporator Cover (left) |
|
$ 93.57 | |||||
| 8 | 4390663 | Gasket, Evaporator Cover (right) |
|
$ 250.95 | |||||
| 9 | WP1-81801-001 | Bi-metal Defrost (Replaces: 8210253) |
|
Immediately | $ 129.87 | ||||
| 10 | 4-81785-001 | Harness, Fan (Replaces: 8210426) |
|
- | |||||
| 11 | 2-80028-101 | Bracket, Motor (Replaces: 4357129) |
|
$ 98.68 | |||||
| 12 | 60001022 | Screw, Motor (Replaces: 4356943) |
|
$ 66.41 | |||||
| 13 | W10309989 | Compressor (includes Items 14,16,18, & 20) (Replaces: 4390734) |
|
Immediately | $ 689.81 | ||||
| 14 | 4356738 | Relay |
|
$ 53.17 | |||||
| 15 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 10.71 | ||||
| 16 | 4356777 | Cover |
|
- | |||||
| 17 | 1-80252-101 | Block Foam (Replaces: 8210261) |
|
$ 6.84 | |||||
| 18 | WP2149959 | Overload (Replaces: 4390896) |
|
$ 140.06 | |||||
| 19 | 4356846 | Sleeve |
|
$ 15.00 | |||||
| 20 | 4356335 | Grommet, Compressor |
|
- | |||||
| 21 | 4356847 | Washer |
|
- | |||||
| 22 | 4356852 | Screw, Compressor |
|
$ 6.57 | |||||
| 23 | W10451951 | Condenser (Replaces: 8210248) |
|
$ 300.73 | |||||
| 24 | 4357263 | Exchanger, Heat |
|
$ 123.66 | |||||
| 25 | 4357257 | Pan, Compressor |
|
- | |||||
| 26 | 4356952 | Clip, Thermostat |
|
- | |||||
| 27 | WP3400094 | Screw (Replaces: 4356970) |
|
$ 9.26 | |||||
| 28 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 8.33 | |||||
| 29 | 3-35956-013 | Capacitor (Replaces: 8210224) |
|
$ 121.12 | |||||
| 30 | WP489491 | Screw (Replaces: 4390821) |
|
$ 7.30 | |||||
| 31 | 4356924 | Shield Heater |
|
- | |||||
| 32 | 4357020 | Grommet |
|
- | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 |
