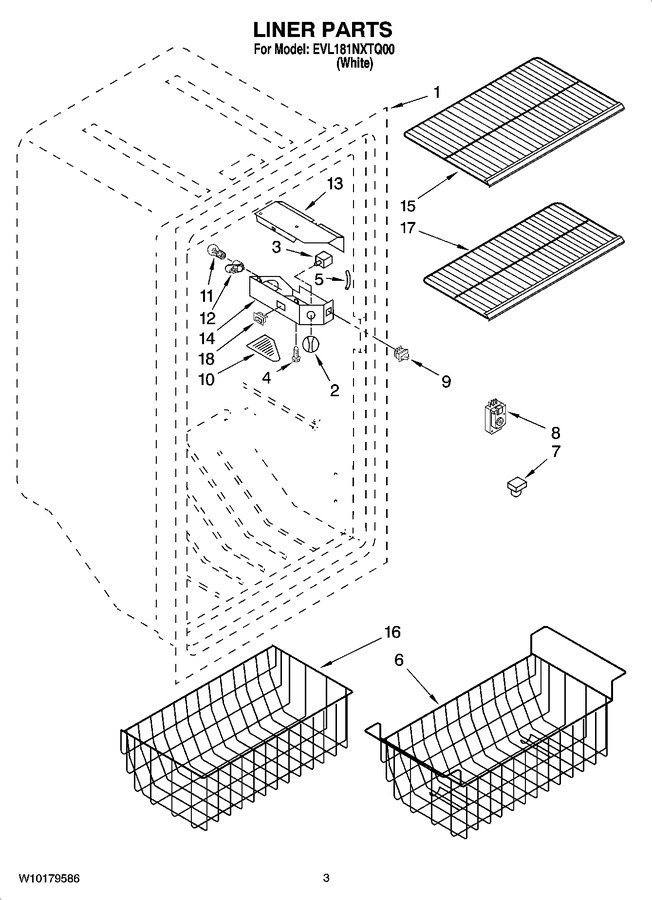

02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3-82390-001 | Knob, Control (Replaces: 8210348) |
|
$ 28.67 | |||||
| 3 | WP4-83053-002 | Thermostat (Replaces: 8210344) |
|
$ 244.50 | |||||
| 4 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 4.07 | |||||
| 5 | WP2196003 | Tubing, Thermostat (Replaces: 8210246) |
|
$ 7.95 | |||||
| 6 | 4390621 | Basket, Wire |
|
- | |||||
| 7 | W10179590 | Stop, Basket |
|
- | |||||
| 8 | WP3-81329 | Defrost Timer (Replaces: 4357124) |
|
Immediately | $ 189.66 | ||||
| 9 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 37.23 | ||||
| 10 | 8210349 | Lens, Light |
|
$ 33.01 | |||||
| 11 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 12 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 107.36 | |||||
| 13 | 8210351 | Shield, Light |
|
$ 42.03 | |||||
| 14 | W10135693 | Box, Control |
|
- | |||||
| 15 | WP4-60638-001 | Shelf, Upper Wire (Replaces: 8210436) |
|
$ 137.48 | |||||
| 16 | 4390621 | Basket, Wire |
|
- | |||||
| 17 | 8210437 | Shelf, Lower Wire |
|
- | |||||
| 18 | 8210370 | Switch, Alarm (illuminated) |
|
- |
