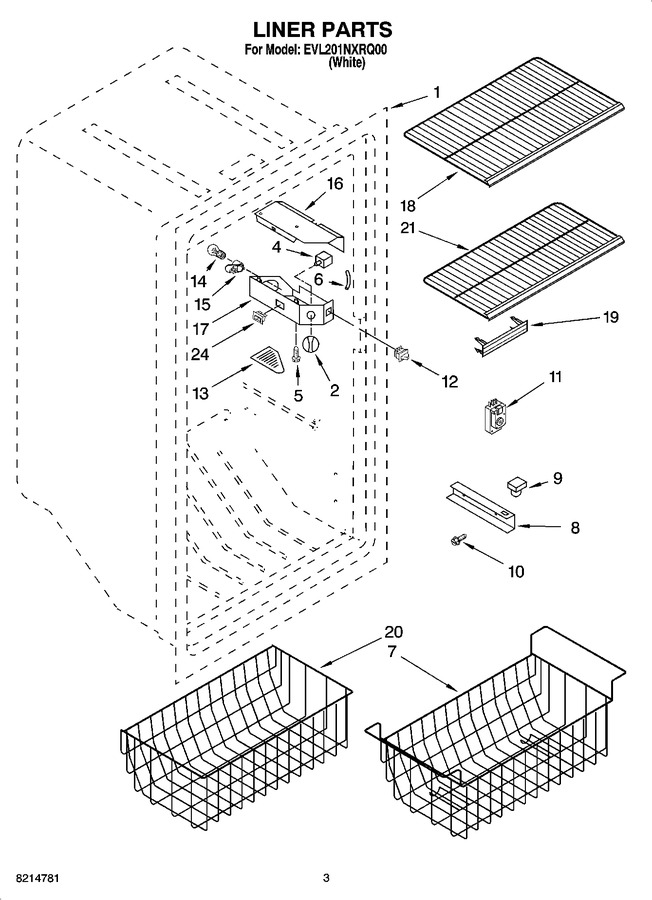

02 - Liner Parts
03 - Unit Parts
04 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3-82390-001 | Knob, Control (Replaces: 8210348) |
|
$ 28.67 | |||||
| 4 | WP4-83053-002 | Thermostat (Replaces: 8210344) |
|
$ 244.50 | |||||
| 5 | WPW10068250 | Screw (Replaces: 4357042) |
|
$ 4.07 | |||||
| 6 | WP2196003 | Tubing, Thermostat (Replaces: 4356800) |
|
$ 7.95 | |||||
| 7 | 4390632 | Basket, Wire |
|
- | |||||
| 8 | 4390820 | Support, Basket (left) |
|
$ 77.44 | |||||
| 8 | 4390819 | Support, Basket (right) |
|
- | |||||
| 9 | 4390796 | Stop, Basket |
|
- | |||||
| 10 | WP3-24004-109 | Screw, Support (3/4``) (Replaces: 4390797) |
|
$ 8.05 | |||||
| 10 | 4390798 | Screw, Support (1 1/2``) |
|
- | |||||
| 11 | WP3-81329 | Defrost Timer (Replaces: 4357124) |
|
Immediately | $ 189.66 | ||||
| 12 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 37.23 | ||||
| 13 | 8210349 | Lens, Light |
|
$ 33.01 | |||||
| 14 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 15 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 107.36 | |||||
| 16 | 8210351 | Shield, Light |
|
$ 42.03 | |||||
| 17 | 8210377 | Box, Control |
|
- | |||||
| 18 | 8210274 | Shelf, Upper Wire |
|
- | |||||
| 19 | WP3-80414-103 | Vent Plug (4) (Replaces: 4357295) |
|
$ 12.86 | |||||
| 20 | 4390933 | Basket, Wire |
|
- | |||||
| 21 | 8210275 | Shelf, Lower Wire |
|
$ 63.66 | |||||
| 24 | 8210370 | Switch, Alarm (illuminated) |
|
- |
