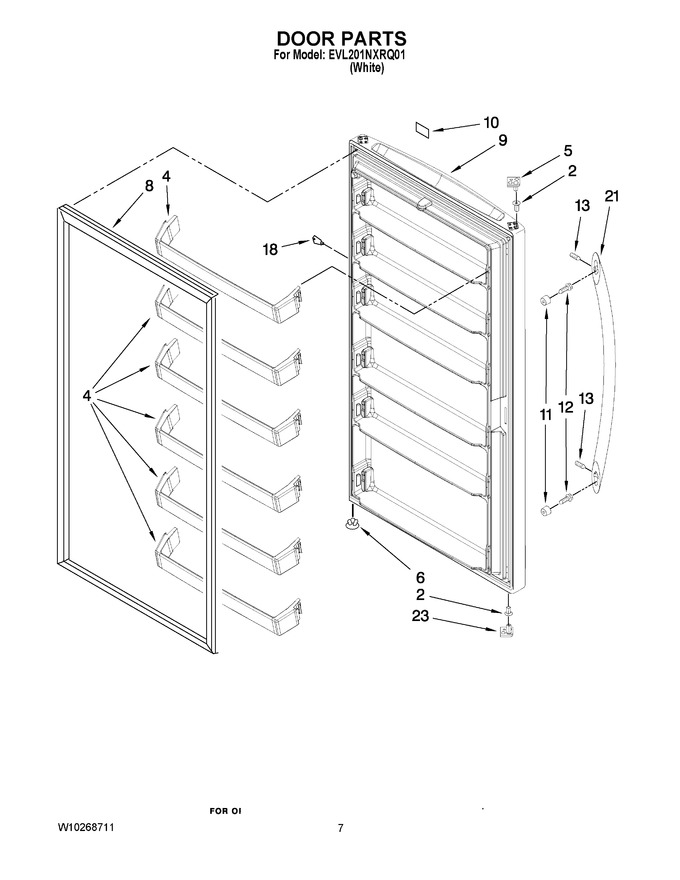

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4390659 | Bushing, Hinge |
|
- | |||||
| 4 | W10450648 | Rail, Door (6) (Replaces: 4390805) |
|
- | |||||
| 5 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 6 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.80 | |||||
| 8 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 364.70 | |||||
| 9 | 8210356 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 10 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 88.74 | ||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 12 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 13 | 8533976 | Screw |
|
$ 8.35 | |||||
| 18 | WP4356840 | Key (Replaces: 4356840) |
|
$ 10.74 | |||||
| 21 | WP2254600W | Handle Assembly (includes Item 13) (Replaces: 2317777W) |
|
$ 235.14 | |||||
| 23 | 8210400 | Stop, Door (lower) |
|
- |
