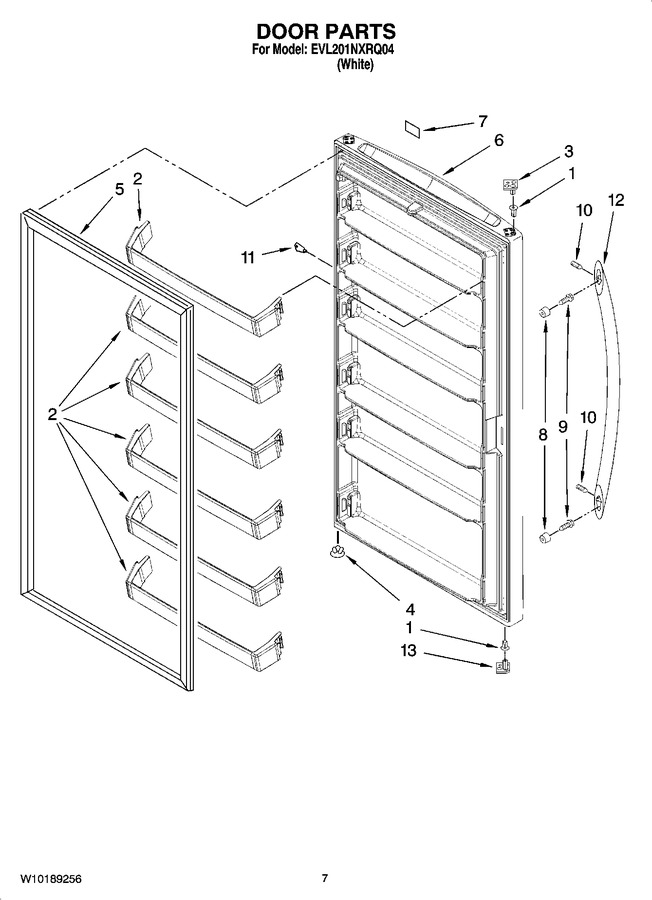

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4390659 | Bushing, Hinge |
|
- | |||||
| 2 | WP4-65451-001 | Rail, Door (6) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 3 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 4 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 5 | WP4-65151-004 | Gasket, Door (Replaces: 8210341) |
|
$ 382.94 | |||||
| 6 | 8210356 | Door Assembly (includes Interior Door Liner) |
|
- | |||||
| 7 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 8 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 10 | 8533976 | Screw |
|
$ 8.35 | |||||
| 11 | WP4356840 | Key (Replaces: 4356840) |
|
$ 11.28 | |||||
| 12 | WP2254600W | Handle Assembly (includes Item 10) (Replaces: 2317777W) |
|
$ 246.90 | |||||
| 13 | 8210400 | Stop, Door (lower) |
|
- | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Master (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 |
