SELECT A DIAGRAM

01 - Cabinet Parts

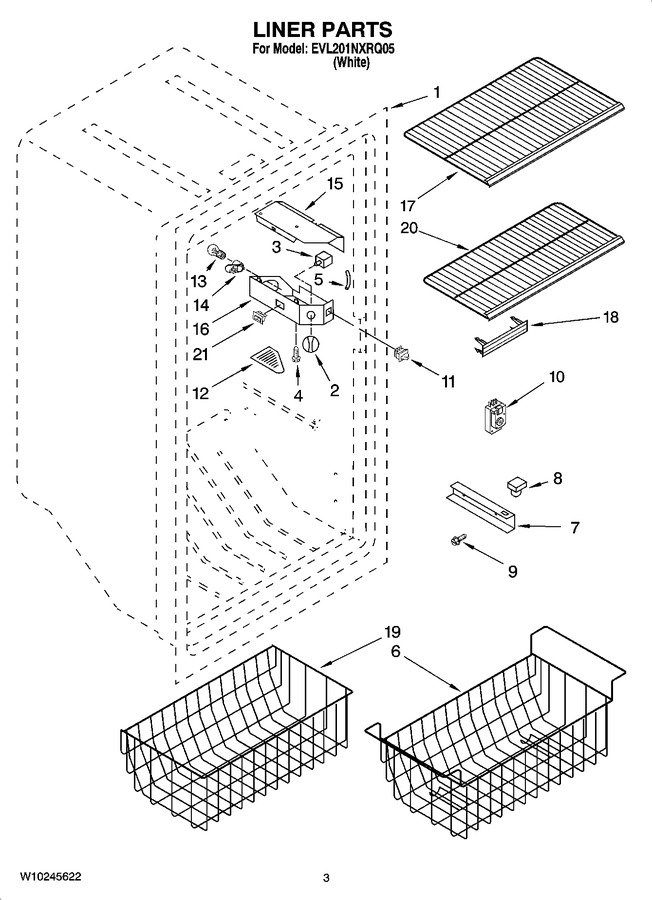

02 - Liner Parts


03 - Unit Parts


04 - Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3-82390-001		Knob, Control   (Replaces: 8210348)				$ 30.10
3	WP4-83053-002		Thermostat   (Replaces: 8210344)				$ 256.73
4	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
5	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
6	4390632		Basket, Wire		Appelez-nous	-
7	4390819		Support, Basket (right)		Appelez-nous	-
7	4390820		Support, Basket (left)				$ 77.44
8	4390823		Stop, Basket		Appelez-nous	-
9	4390798		Screw, Support (1 1/2``)		Appelez-nous	-
9	WP3-24004-109		Screw, Support (3/4``)   (Replaces: 4390797)				$ 9.14
10	WP3-81329		Defrost Timer   (Replaces: 4357124)			Immediately	$ 199.14
11	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
12	8210349		Lens, Light				$ 33.01
13	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
14	WP3-82393-001		Socket, Light   (Replaces: 8210350)				$ 112.73
15	8210351		Shield, Light				$ 42.03
16	8210377		Box, Control		Appelez-nous	-
17	8210274		Shelf, Upper Wire		Appelez-nous	-
18	WP3-80414-103		Vent Plug (4)   (Replaces: 4357295)				$ 13.50
19	4390933		Basket, Wire		Appelez-nous	-
20	8210275		Shelf, Lower Wire				$ 63.66
21	W10164530		Switch, Alarm (illuminated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
