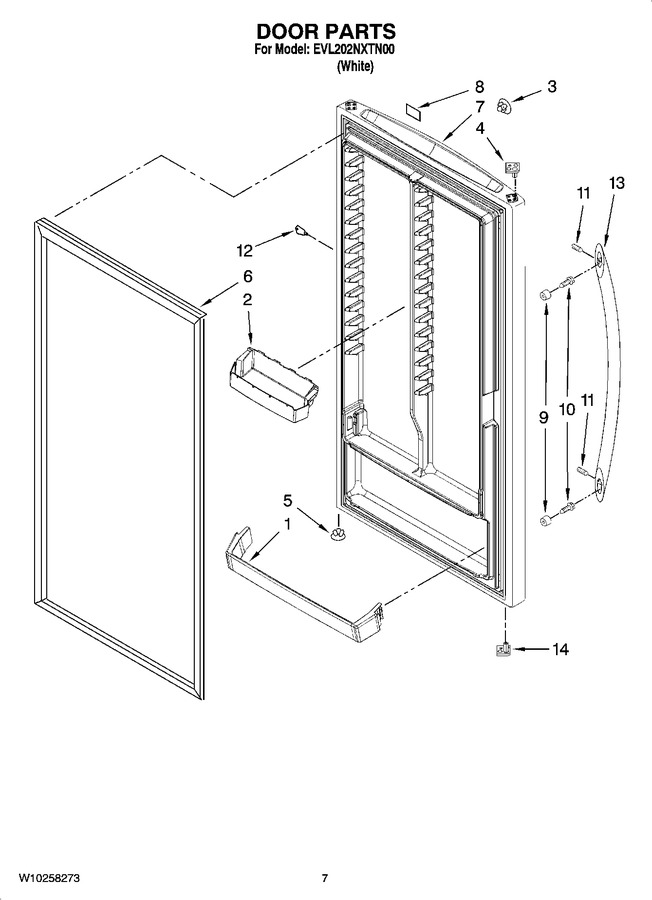

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4-65451-001 | Rail, Door (1) (Replaces: 8210404) |
|
$ 89.86 | |||||
| 2 | WP4-82576-001 | Bin, Door (Replaces: W10164621) |
|
$ 74.96 | |||||
| 3 | WP2189000 | Plug, Door (wh) (Replaces: 4390596) |
|
Immediately | $ 6.99 | ||||
| 4 | 8210401 | Stop, Door (upper) |
|
- | |||||
| 5 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 10.21 | |||||
| 6 | W10260288 | Gasket, Door |
|
$ 200.55 | |||||
| 7 | W10281109 | Door Assy |
|
$ 638.67 | |||||
| 8 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 83.86 | ||||
| 9 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 9.12 | ||||
| 10 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 11 | 8533976 | Screw |
|
$ 8.35 | |||||
| 12 | WP4356840 | Key (Replaces: 4356840) |
|
$ 10.15 | |||||
| 13 | W10202711 | Handle Assembly (includes Item 11) |
|
- | |||||
| 14 | 8210400 | Stop, Door (lower) |
|
- |
