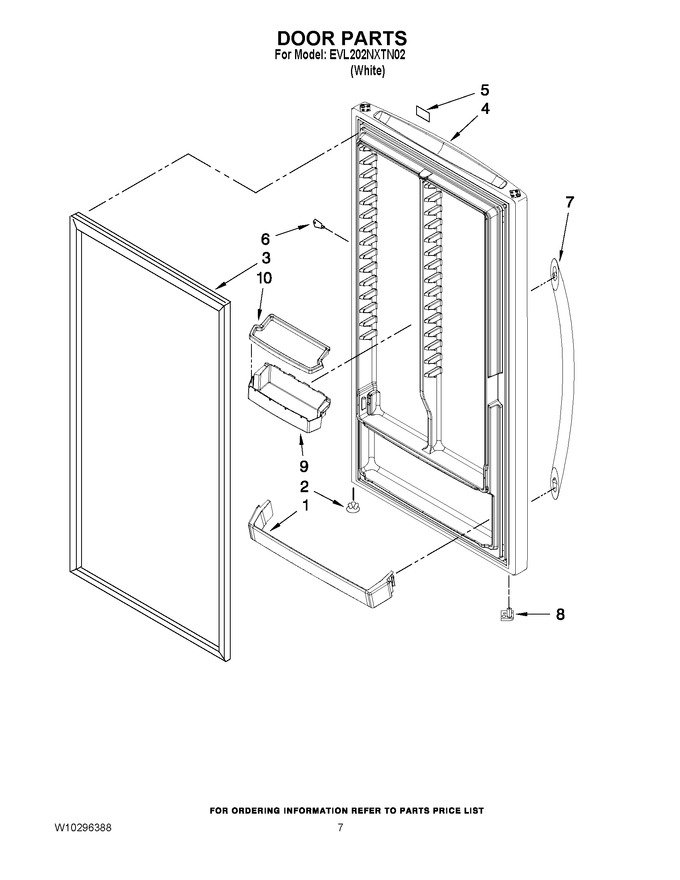

04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4-65451-001 | Rail, Door (1) (Replaces: 8210404) |
|
$ 99.84 | |||||
| 2 | 3-24898-007 | Vent Plug (Replaces: 4357067) |
|
$ 11.34 | |||||
| 3 | W10260288 | Gasket, Door |
|
$ 200.55 | |||||
| 4 | W10281109 | Door Assembly (includes Interior Door Liner) |
|
$ 638.67 | |||||
| 5 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 6 | WP4356840 | Key (Replaces: 4356840) |
|
$ 11.28 | |||||
| 7 | W10296510 | Handle Assembly |
|
- | |||||
| 8 | 8210400 | Stop, Door |
|
- | |||||
| 9 | WP4-82576-001 | Bin (Replaces: W10164621) |
|
$ 83.29 | |||||
| 10 | WP4-82576-001 | Cover (Replaces: W10296417) |
|
$ 83.29 |
