SELECT A DIAGRAM

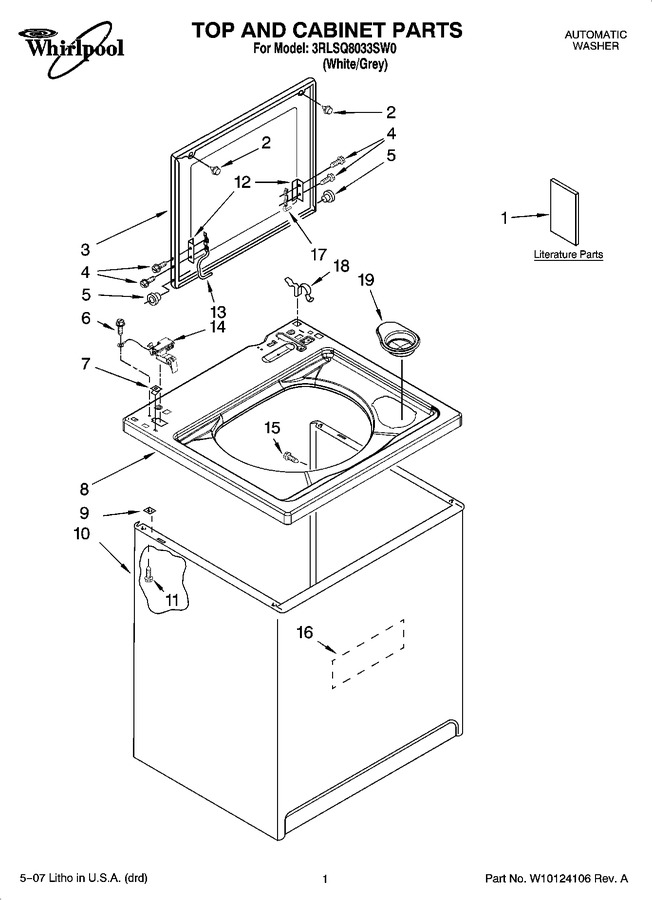

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8315975		Installation & User Guide		Appelez-nous	-
1	W10131577		Installation Instructions		Appelez-nous	-
1	W10131573		Use & Care Guide		Appelez-nous	-
1	3954738		Wiring Diagram		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
3	W10119146		Lid		Appelez-nous	-
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
5	8319539		Bearing, Lid Hinge (2)				$ 5.51
6	W10080580		Screw, Ground		Appelez-nous	-
7	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.39
8	8543447		Top				$ 127.50
9	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
10	63424		Cabinet				$ 370.02
11	W10080680		Screw, 10-16 X 3/8 (4)		Appelez-nous	-
12	WP21097		Pad, Lid Hinge (2)   (Replaces: 21097)				$ 7.80
13	8559336		Hinge, Lid (l.h.)		Appelez-nous	-
14	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
15	W10080590		Screw, 10-16 X 1/2		Appelez-nous	-
16	3976348		Absorber, Sound (cabinet)				$ 37.92
17	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 27.45
18	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
19	8566266		Dispenser, Bleach				$ 39.81

    View Diagram in Separate Window       Print Part List
