SELECT A DIAGRAM

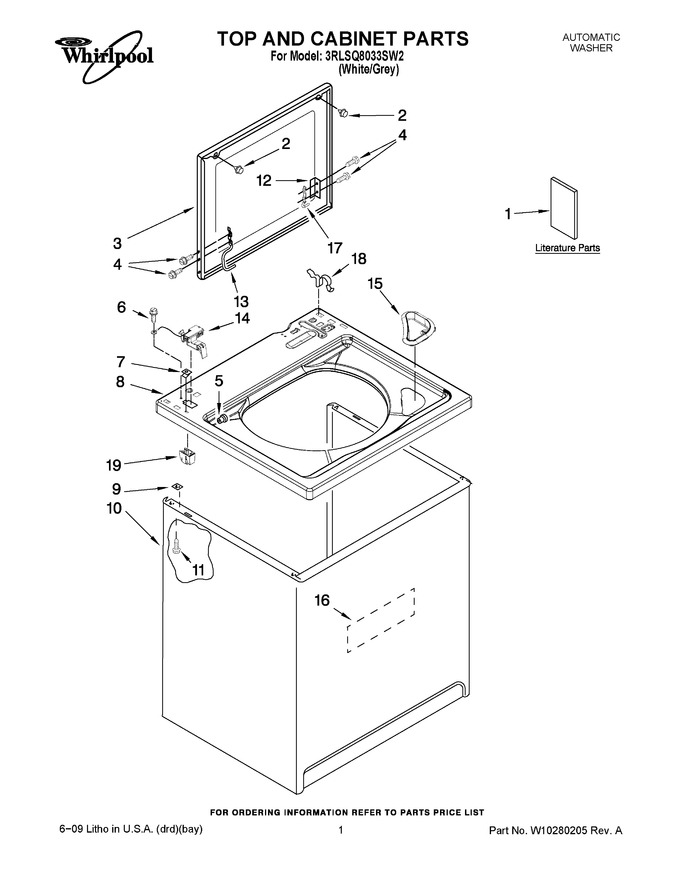

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131573		Use & Care Guide		Appelez-nous	-
1	W10131548		Installation & User Guide		Appelez-nous	-
1	W10215726		Wiring Diagram		Appelez-nous	-
1	W10131577		Installation Instructions		Appelez-nous	-
2	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
3	W10171315		Lid		Appelez-nous	-
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.55
5	8319539		Bearing, Lid Hinge (2)				$ 5.51
6	W10080580		Screw, Ground		Appelez-nous	-
7	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
8	W10194871		Top		Appelez-nous	-
9	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 8.07
10	63424		Cabinet				$ 388.52
11	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
12	WP21097		Pad, Lid Hinge   (Replaces: 21097)				$ 8.19
13	W10225136		Hinge, Lid (l.h.)				$ 26.22
14	W10237162		Switch, Lid		Appelez-nous	-
15	WPW10192089		Dispenser, Bleach   (Replaces: W10192089)			Immediately	$ 8.36
16	W11096159		Cabinet-damper, Sound   (Replaces: W10177046)				$ 28.73
17	WP91770		Hinge, Lid (r.h.)   (Replaces: 91770)				$ 28.82
18	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
19	W10180691		Shield, Lid Switch		Appelez-nous	-
