SELECT A DIAGRAM

01 - Cover


02 - Control Panel


03 - Cooktop


04 - Burner


05 - Oven


06 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4336234		Grate, Burner (4)		Appelez-nous	-
2	4338425		Rivet		Appelez-nous	-
3	4337624		Hinge Bracket		Appelez-nous	-
4	4333235		Hinge (left)		Appelez-nous	-
4	4333234		Hinge (right)		Appelez-nous	-
5	WP999367		Screw No. 10-32x3/4   (Replaces: 4333332)				$ 7.70
6	4336779		Cooktop (almond)		Appelez-nous	-
6	4336778		Cooktop (white)		Appelez-nous	-
7	4337004		Bottom, Burner Box		Appelez-nous	-
8	4337570		Panel, Manifold		Appelez-nous	-
9	4337055		Knob, Thermostat		Appelez-nous	-
10	4337054		Knob, Gas Valve (4)		Appelez-nous	-
11	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
14	4337625		Cleat		Appelez-nous	-
15	4336962		Manifold Bracket (right)		Appelez-nous	-
15	4336963		Manifold Bracket (left)		Appelez-nous	-

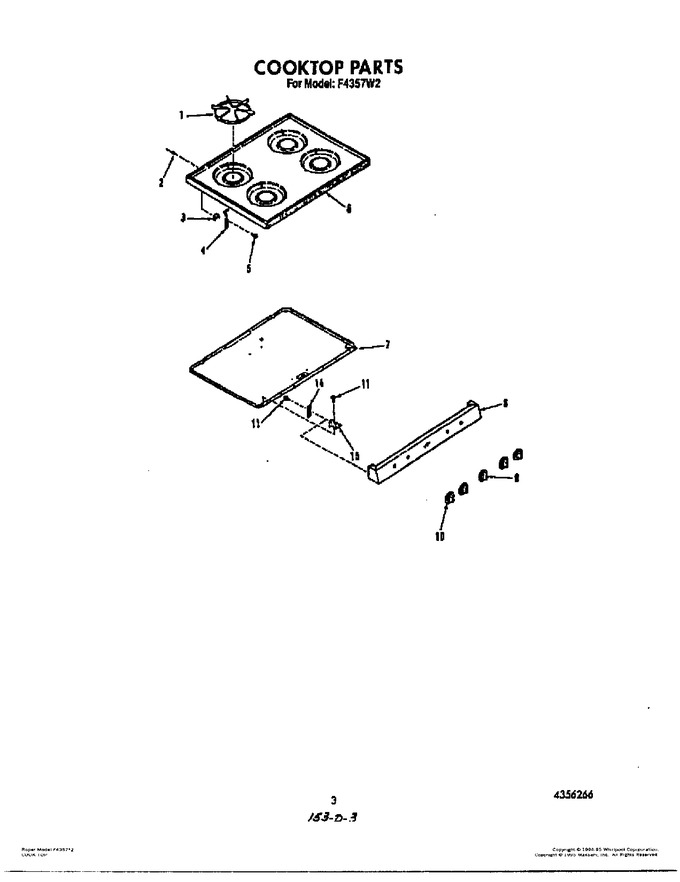

    View Diagram in Separate Window       Print Part List
