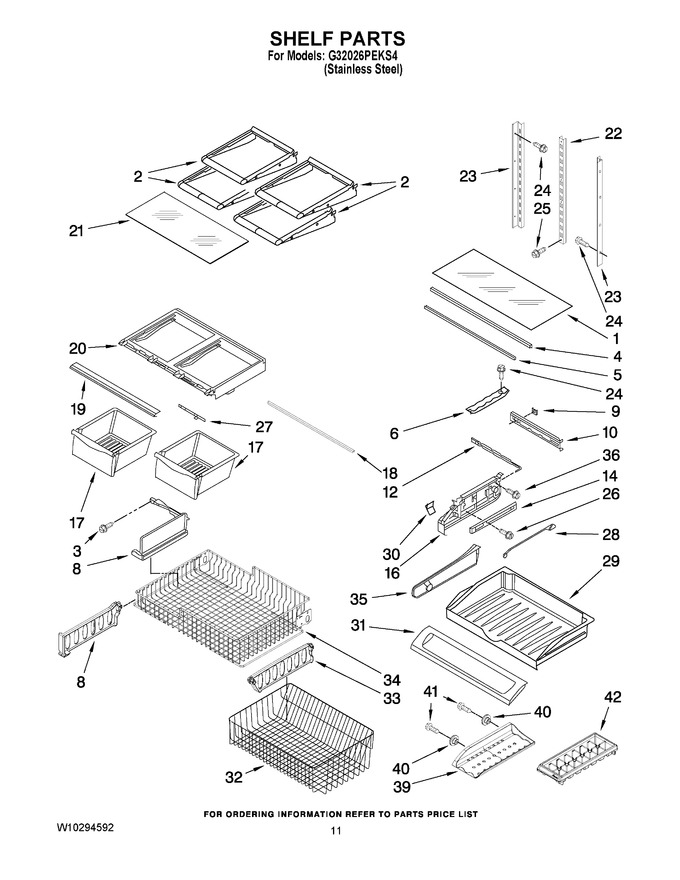

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11125512		Glass, Pantry   (Replaces: 12204829)			Immediately	$ 253.06
2	WP12463911		Shelf, Glide Out   (Replaces: 12463911)				$ 309.28
3	12990601		Screw		Appelez-nous	-
4	W11812285		Extr, Glass Support (2)   (Replaces: 12655902SP)				$ 53.33
5	WP12227305WD		Brace, Pantry (2)   (Replaces: 12227305WD)				$ 108.36
6	WP67001719		Track-pantry   (Replaces: 12531901)			Immediately	$ 8.99
8	12693802		Divider, Upper Basket		Appelez-nous	-
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
10	12656202		Housing, Control				$ 148.84
12	WP67003793		Slide, Temperature   (Replaces: 12655402)			Immediately	$ 78.49
14	WPW10235370		Glide, Drawer(2)   (Replaces: 13058101V)			Immediately	$ 199.80
16	WP12656105		Endcap, Pantry (left)   (Replaces: 12656105)			Immediately	$ 58.41
16	WP12656018		Endcap, Pantry (right)   (Replaces: 12656018)			Immediately	$ 58.87
17	WP67002659		Pan, Crisper (2)   (Replaces: 12531105)			Immediately	$ 147.67
18	WP12227304WD		Brace, Crisper   (Replaces: 12227304WD)				$ 108.69
19	W10231346		Trim, Crisper				$ 51.20
20	WP67006185		Frame, Crisper   (Replaces: 12531202SP)				$ 216.05
21	WP67006655		Glass, Crisper Cover   (Replaces: 12204821)			Immediately	$ 228.45
22	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
23	12710608		Ladder, Side		Appelez-nous	-
24	67006425		Screw (6)   (Replaces: 12990513)			Immediately	$ 7.30
25	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.79
26	WP67006415		Screw (4)   (Replaces: 12990512)				$ 8.38
27	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
28	67003794		Rod, Temperature Control   (Replaces: 12655303)				$ 13.82
29	W11490183		Drawer, Pantry   (Replaces: 12655702)				$ 144.29
30	W11498983		Knob, Temperature Control   (Replaces: 12655204V)				$ 30.64
31	W10827015		Door, Pantry Drawer   (Replaces: 12656814)			Immediately	$ 175.81
32	13016004		Basket, Freezer (lower)		Appelez-nous	-
33	12659606		Divider, Lower Basket		Appelez-nous	-
34	12896404		Basket, Freezer (upper)		Appelez-nous	-
35	WP67002321		Divider, Pantry Drawer   (Replaces: 12709301)				$ 33.79
36	WP98165		Screw (4)   (Replaces: 12990504)				$ 8.57
39	12646501		Rack, Ice Tray		Appelez-nous	-
40	10972101		Spacer, Ice Rack				$ 7.82
41	WP67006908		Screw, Ice Rack   (Replaces: 12991001)			Immediately	$ 8.78
42	WP841180A		Ice Cube Tray   (Replaces: D7725402S)			Immediately	$ 47.84
