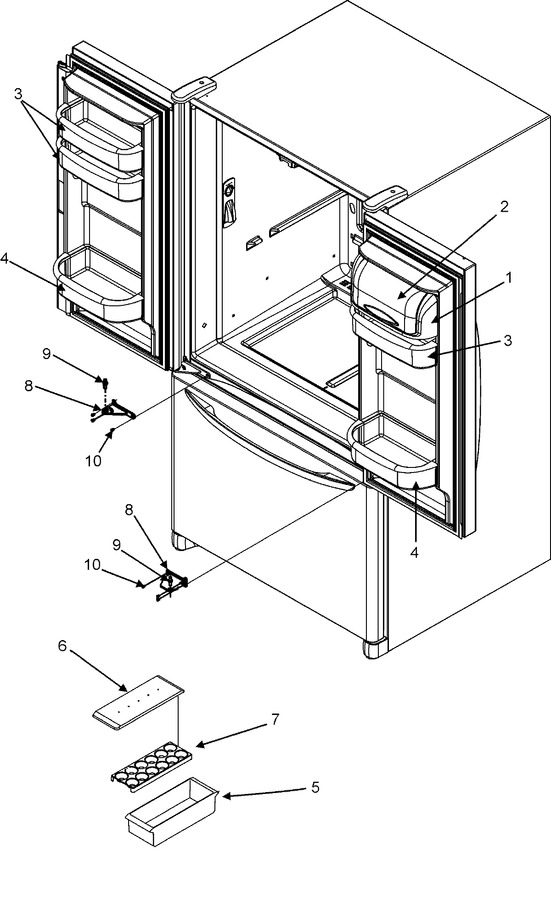

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 83.82
2	WP67003637		Door, Dairy   (Replaces: 67003637)	10		Immediately	$ 78.73
3	WPW10324005		Bucket, Med Ref Door   (Replaces: 67003766)	10			$ 74.05
4	WPW10289494		Bucket, Ref Dr Gal   (Replaces: 67005054)	10			$ 83.41
5	10423131		Bin, Utility	10			$ 31.13
6	10436404		Lid, Utility	10			$ 60.85
7	10436506		Tray, Egg	10			$ 8.28
8	67006379		Hinge, Center (rt-wht)	11	Appelez-nous	-
8	W11689473		Hinge, Center (wht)   (Replaces: 67001168)	10			$ 66.47
8	W10918113		Hinge, Center (lt-wht)   (Replaces: 67006277)	11			$ 93.26
9	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 7.93
10	W11573362		Screw, T. F.   (Replaces: M0226233)	10			$ 14.02

    View Diagram in Separate Window       Print Part List
