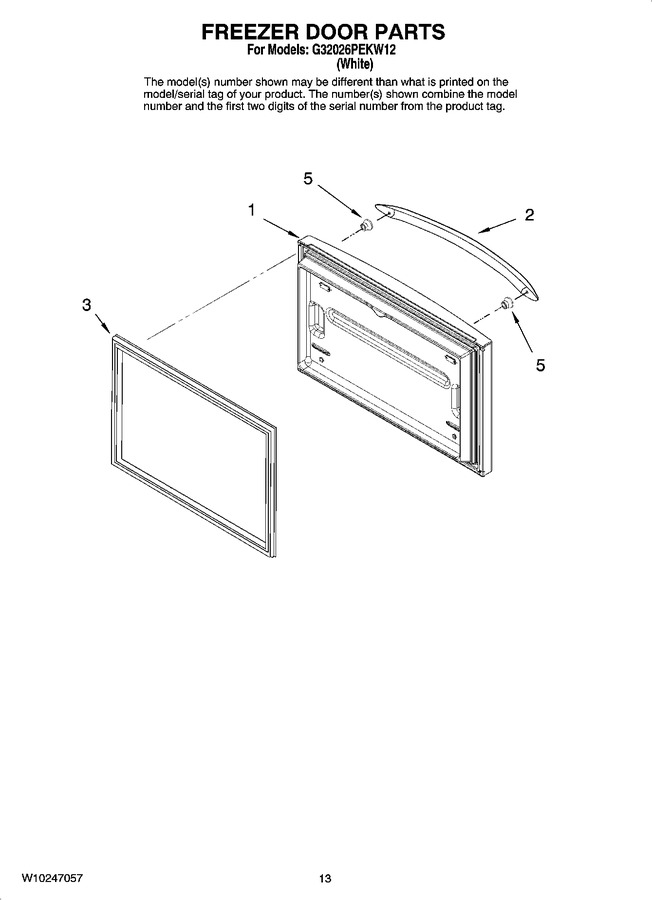

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10188317 | Freezer Door (white) |
|
- | |||||
| 2 | W10119663 | Handle (white) |
|
$ 75.72 | |||||
| 3 | W10443319 | Gasket, Door (white) (Replaces: W10133249) |
|
$ 281.76 | |||||
| 5 | WP12992902 | Mount, Handle (Replaces: 12992902) |
|
$ 11.07 | |||||
| NI | WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 173.95 | ||||
| NI | 285006 | Enamel, Black (13 Oz. Spray Can) (Replaces: 350939) |
|
$ 57.04 | |||||
| NI | 350930 | Enamel, White (13 Oz. Spray Can) |
|
Immediately | $ 38.21 | ||||
| NI | 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | |||||
| NI | 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | |||||
| NI | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | ||||
| NI | 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | |||||
| NI | 876370 | Kit, Insulation (2 Pcs. X 3`` X 24``x 48``) |
|
$ 231.56 | |||||
| NI | 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | |||||
| NI | 01300019EA | Cleaner, Stnls Steel Magic (Replaces: 20000008) |
|
Immediately | $ 23.63 | ||||
| NI | 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 78.45 | |||||
| NI | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| NI | 833938 | Kit, Terminal Connector |
|
$ 8.07 | |||||
| NI | 4396418 | Complete Ice Maker (Replaces: 67001740) |
|
$ 340.53 | |||||
| NI | 1117510 | Torx Key |
|
$ 5.84 | |||||
| NI | 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | |||||
| NI | WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 12.18 | ||||
| NI | WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 117.94 | |||||
| NI | 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 231.56 | |||||
| NI | 876370 | Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 231.56 | |||||
| NI | 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | ||||
| NI | 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | ||||
| NI | 350942 | Primer, White (13 Oz. Spray Can) |
|
$ 89.66 |
