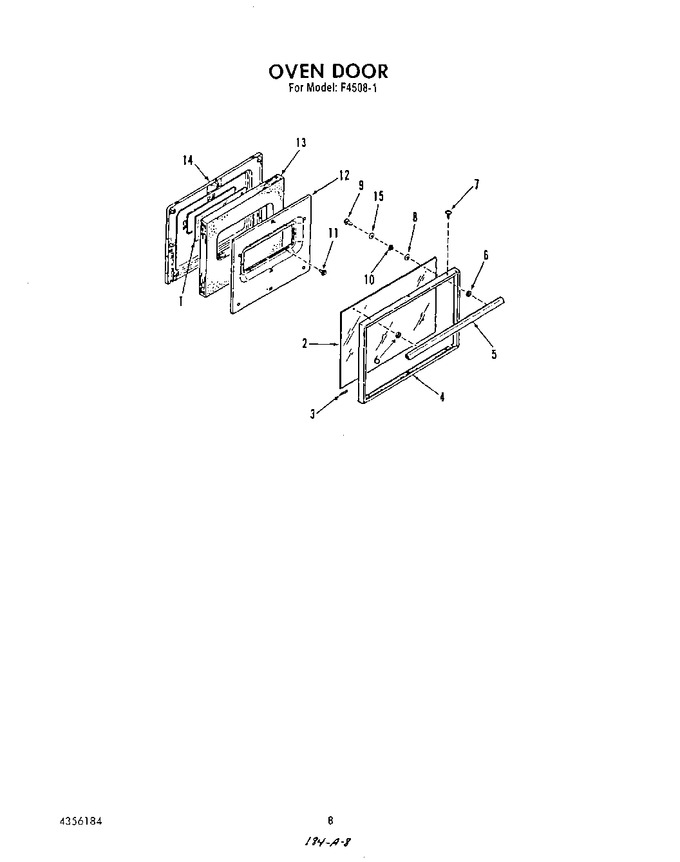

06 - Oven Door


07 - Wire Harness , Griddle


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4334792		Glass, Inner		Appelez-nous	-
2	4336721		Glass, Outer		Appelez-nous	-
3	4324217		Cushion		Appelez-nous	-
4	4336720		Frame		Appelez-nous	-
5	4337344		Handle		Appelez-nous	-
6	4323997		Spacer, Handle		Appelez-nous	-
7	4336631		Screw		Appelez-nous	-
8	4336868		Washer		Appelez-nous	-
9	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
10	4336869		Spacer, Glass		Appelez-nous	-
11	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
12	4335755		Retainer		Appelez-nous	-
13	4354748		Insulation		Appelez-nous	-
14	4336593		Lining		Appelez-nous	-
15	4323694		Washer		Appelez-nous	-
