SELECT A DIAGRAM

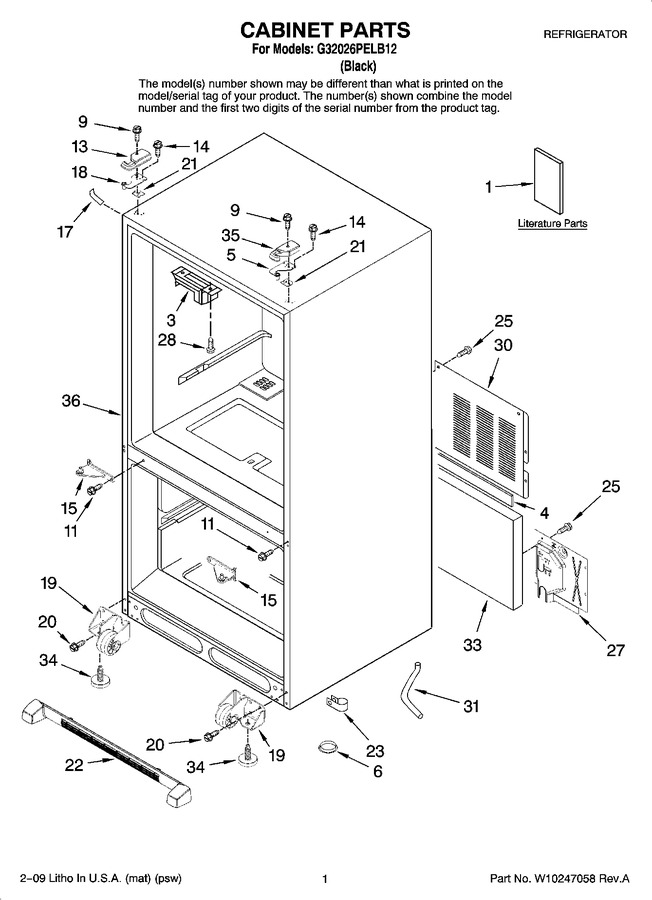

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827959		Tech Sheet		Appelez-nous	-
1	12828189		Owners Manual		Appelez-nous	-
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.39
4	B5759649		Gasket		Appelez-nous	-
5	12626910ED		Hinge, Top Right   (Replaces: 12626907ED)				$ 112.38
6	A3076901		Plug-button				$ 5.70
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 6.80
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 13.25
13	W10175447		Cover, Left Hinge (black)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.59
15	12655103ED		Center Hinge   (Replaces: 12655102ED)				$ 80.33
17	67003485		Cover, Corner (black)			Immediately	$ 19.93
18	12626911ED		Hinge, Top Left   (Replaces: 12626908ED)				$ 80.15
19	W10137533		Bracket, Foot (2) (right)		Appelez-nous	-
19	W10137532		Bracket, Foot (2) (left)		Appelez-nous	-
20	67006564		Screw			Immediately	$ 7.34
21	8208257		Shim, Hinge		Appelez-nous	-
22	W10131134		Grille, Toe (black)				$ 53.25
23	67001067		Clip, Drain Tube				$ 8.69
25	67006425		Screw (10)			Immediately	$ 6.57
27	12479808		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.52
30	67002230		Cover, Unit		Appelez-nous	-
31	67001066		Tube, Drain				$ 55.82
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.42
35	8170765		Cover, Right Hinge (black)		Appelez-nous	-
