SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts

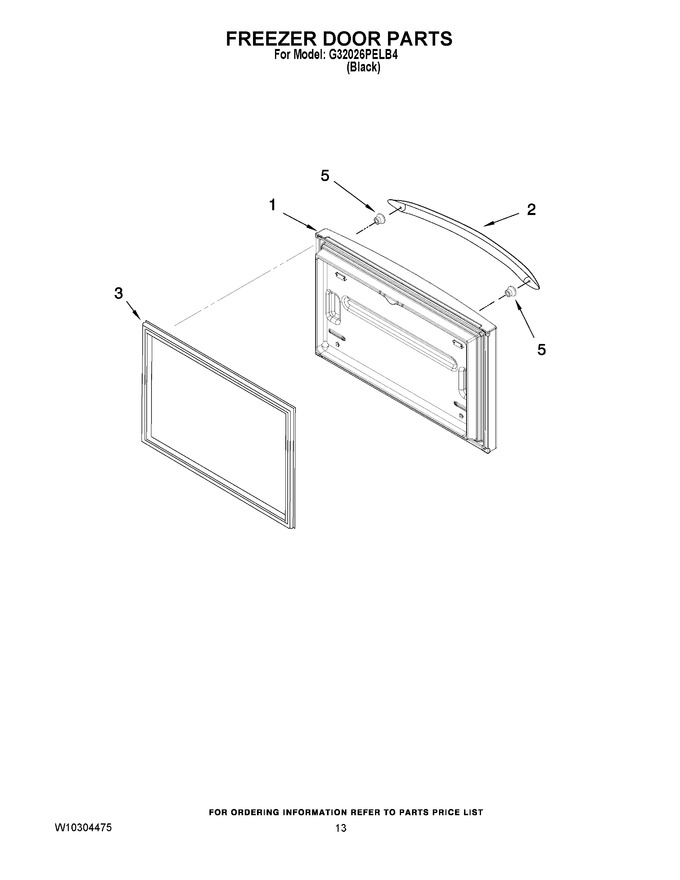

07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13092221BQ		Freezer Door (black)		Appelez-nous	-
2	W10179169		Handle (black)				$ 72.25
3	W10436252		Gasket, Door (black)   (Replaces: W10131754)			Immediately	$ 362.28
5	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.91

    View Diagram in Separate Window       Print Part List
