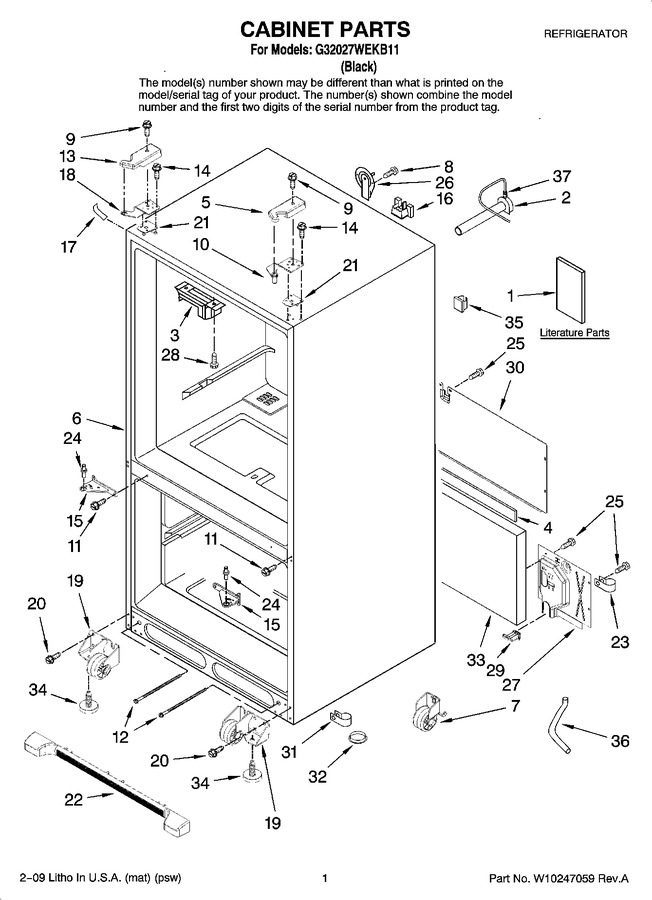

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12827957 | Tech Sheet |
|
- | |||||
| 1 | 12828189 | Owners Manual |
|
- | |||||
| 2 | W11176463 | Elbow, Fill Tube (Replaces: W10137519) |
|
Immediately | $ 119.86 | ||||
| 3 | WP67003405 | Block, Pivot (Replaces: 67003405) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12629801B | Cover, Right Hinge (black) |
|
$ 25.13 | |||||
| 7 | 67006118 | Roller Assy.(rear) |
|
- | |||||
| 8 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 9 | WP8281196 | Screw (Replaces: 67006521) |
|
Immediately | $ 7.55 | ||||
| 10 | 12626910ED | Hinge, Top Right (Replaces: 12626907ED) |
|
$ 124.87 | |||||
| 11 | W11573362 | Screw (6) (Replaces: 67006380) |
|
$ 14.72 | |||||
| 12 | 67006697 | Bolt, Adjusting (rear) |
|
$ 12.88 | |||||
| 13 | WP67003637 | Cover, Left Hinge (black) (Replaces: 67006727) |
|
Immediately | $ 82.67 | ||||
| 14 | WP489349 | Screw (6) (Replaces: 67006303) |
|
Immediately | $ 8.43 | ||||
| 15 | 12655103ED | Hinge, Center (black) (Replaces: 12655102ED) |
|
$ 89.26 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | 67003485 | Cover, Corner (2) (black) |
|
Immediately | $ 22.14 | ||||
| 18 | 12626911ED | Hinge, Top Left (Replaces: 12626908ED) |
|
$ 89.05 | |||||
| 19 | W11820445 | Roller Assy.(front) (right) (Replaces: W10130459) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Roller Assy.(front) (left) (Replaces: W10130460) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (8) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | W10131134 | Grille, Toe (black) |
|
$ 53.25 | |||||
| 23 | W10833902 | Clamp, Tube (Replaces: M0108105) |
|
$ 11.54 | |||||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) |
|
$ 8.78 | |||||
| 25 | 67006425 | Screw (10) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line (Replaces: 67003331) |
|
$ 19.19 | |||||
| 27 | 67004735 | Cover, Water Valve |
|
- | |||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 67006669) |
|
Immediately | $ 8.36 | ||||
| 29 | 12831101 | Sweep, Dual Tube (Replaces: 67004101) |
|
$ 13.03 | |||||
| 30 | 67002230 | Cover, Unit |
|
- | |||||
| 31 | 67001067 | Clip, Drain Tube |
|
$ 9.66 | |||||
| 32 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 33 | 67003796 | Insulation, Sound |
|
$ 19.27 | |||||
| 34 | WPW10141622 | Brake, Foot (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | WPM0104106 | Clip (2) (Replaces: M0104106) |
|
$ 8.17 | |||||
| 36 | 67001066 | Tube, Drain |
|
$ 55.82 | |||||
| 37 | WPM0114003 | Clip (Replaces: M0114003) |
|
$ 11.60 |
