SELECT A DIAGRAM

02 - Cook Top


03 - Control Panel , Lit/optional


04 - Oven


05 - Burner

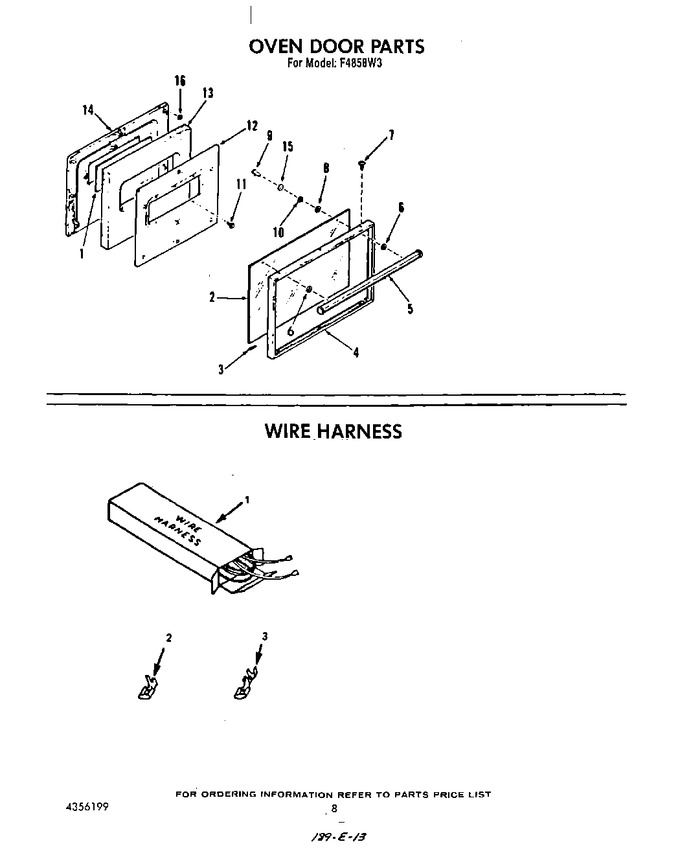

06 - Oven Door , Wire Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4342941		Wire Harness (switches)		Appelez-nous	-
1	4342993		Wire Harness (main)		Appelez-nous	-
1	4334792		Glass, Inner		Appelez-nous	-
2	4336721		Glass, Outer		Appelez-nous	-
3	WP285432		Faston Terminal, (1/4``)   (Replaces: 4325037)				$ 7.34
3	4324217		Cushion		Appelez-nous	-
4	4336720		Frame		Appelez-nous	-
5	4336828		Handle		Appelez-nous	-
6	4323997		Spacer, Handle		Appelez-nous	-
7	4337623		Screw		Appelez-nous	-
8	4336868		Washer		Appelez-nous	-
9	4342665		Screw, No.10-32 X 3/4		Appelez-nous	-
10	4336869		Spacer, Glass		Appelez-nous	-
11	4323884		Screw, No.10-32x17/32``		Appelez-nous	-
12	4335755		Retainer		Appelez-nous	-
13	4354748		Insulation		Appelez-nous	-
14	4336593		Lining		Appelez-nous	-
15	4342666		Retainer, Glass		Appelez-nous	-
16	4337618		Washer, Felt		Appelez-nous	-
A1	4342992		Wire Harness (backguard)		Appelez-nous	-
A2	4325035		Flag Terminal-1/4``		Appelez-nous	-
A3	4325036		Faston Terminal (3/16``)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
