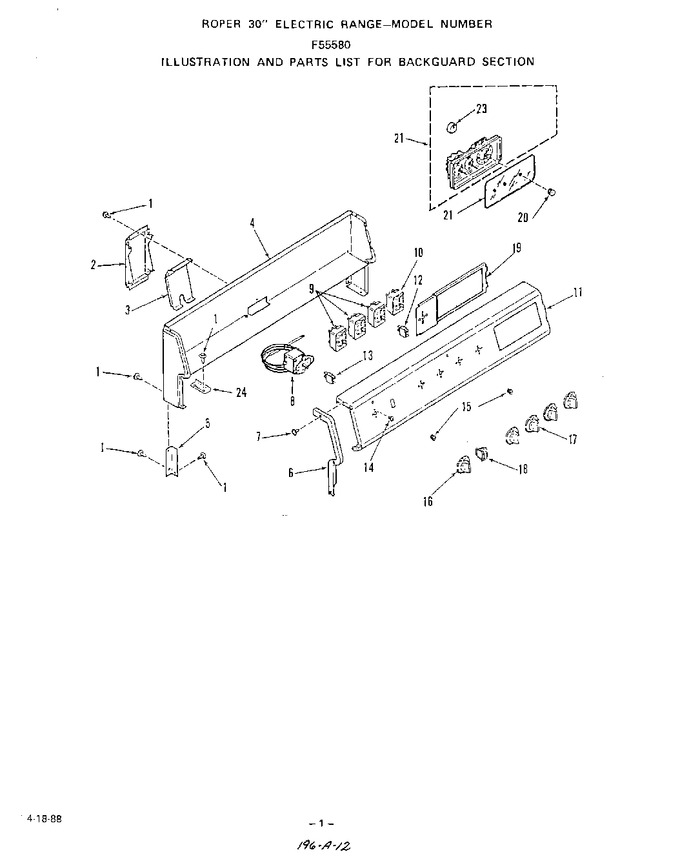

SELECT A DIAGRAM

02 - Backguard


03 - Main


04 - Body


05 - Oven Door


06 - Wire Harnesses And Components , Lit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	334363		Wire Raceway		Appelez-nous	-
3	334364		Raceway Cover		Appelez-nous	-
4	334199		Backguard Body		Appelez-nous	-
5	335120		Backguard Support (right)		Appelez-nous	-
5	335121		Backguard Support (left)		Appelez-nous	-
6	335077		End Cap (left)		Appelez-nous	-
6	335076		End Cap (right)		Appelez-nous	-
7	327621		Screw 6-20x3/8``		Appelez-nous	-
8	334897		Thermostat		Appelez-nous	-
9	5500-200		Infinite Switch (lt.fr., Lt. Rr., Rt. Rr.)   (Replaces: 334887)			Immediately	$ 54.85
10	5500-200		Infinite Switch (rt. Front)   (Replaces: 334888)			Immediately	$ 54.85
11	339302		Control Panel (almond)		Appelez-nous	-
11	339301		Control Panel (white)		Appelez-nous	-
12	331716		Indicator Light		Appelez-nous	-
13	331717		Indicator Light		Appelez-nous	-
14	78565		Screw 8-32x3/16``		Appelez-nous	-
15	331705		Lens-indicator Light		Appelez-nous	-
16	334991		Thermostat Knob		Appelez-nous	-
17	334988		Infinite Knob		Appelez-nous	-
18	334649		Light Switch		Appelez-nous	-
19	334200		Clock Bracket		Appelez-nous	-
20	334045		Clock Knob		Appelez-nous	-
21	323174		Clock Glass		Appelez-nous	-
22	283297		Clock Motor (50 Cycle)		Appelez-nous	-
22	283296		Clock Motor-60 Cycle		Appelez-nous	-
23	341017		Clock (50 Cycle)		Appelez-nous	-
23	341016		Clock (60 Cycle)		Appelez-nous	-
24	335977		Cleat		Appelez-nous	-
