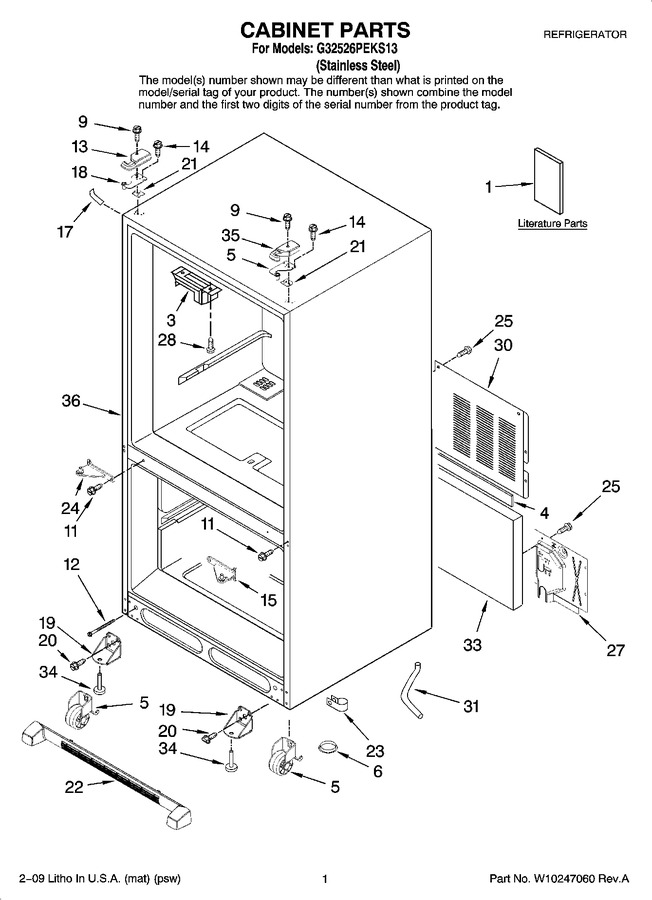

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827959		Tech Sheet		Appelez-nous	-
1	12828189		Owners Manual		Appelez-nous	-
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 7.39
4	B5759649		Gasket		Appelez-nous	-
5	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 42.42
6	A3076901		Plug-button				$ 5.70
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 6.80
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 13.25
12	71003131		Bolt, Adjusting   (Replaces: 67006611)			Immediately	$ 6.37
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 7.59
15	W10918164		Hinge, Center (rt) (black)   (Replaces: 67006443)				$ 82.38
17	67003485		Cover, Corner (black)			Immediately	$ 19.93
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 81.98
19	12906303WD		Bracket, Foot (2)   (Replaces: 12906303ED)				$ 79.72
20	67006564		Screw			Immediately	$ 7.34
21	8208257		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 139.11
23	67001067		Clip, Drain Tube				$ 8.69
24	67006442		Hinge, Center (lt) (black)				$ 108.69
25	67006425		Screw (10)			Immediately	$ 6.57
27	12479807		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 7.52
30	67006102		Cover, Unit		Appelez-nous	-
31	67001066		Tube, Drain				$ 55.82
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 10.96
35	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
