Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 4337923 Clock Appelez-nous -
2 4323476 Screw, No.6-32 X 5/16 Appelez-nous -
3 4337308 Cover, Wire Appelez-nous -
4 4323413 Clip, Trim Appelez-nous -
5 WP681414 Screw, No.10-16 X 7/16   (Replaces: 4335248) In-Stock Immediately $ 7.62

6 4335177 Support (left) Appelez-nous -
6 4335176 Support (right) Appelez-nous -
7 WP308685 Screw, No.10 X1/2   (Replaces: 4335117) In-Stock Immediately $ 7.08

8 WP4314961 Switch, Oven Light   (Replaces: 4337275) Special Order $ 84.56

9 4337603 Frame, Bezel Appelez-nous -
10 4338182 Screw Appelez-nous -
11 4337111 Knob, Clock Appelez-nous -
12 4337548 Insert-backguard Appelez-nous -
13 4337547 Backguard Appelez-nous -
4337926 Xlens, Clock Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

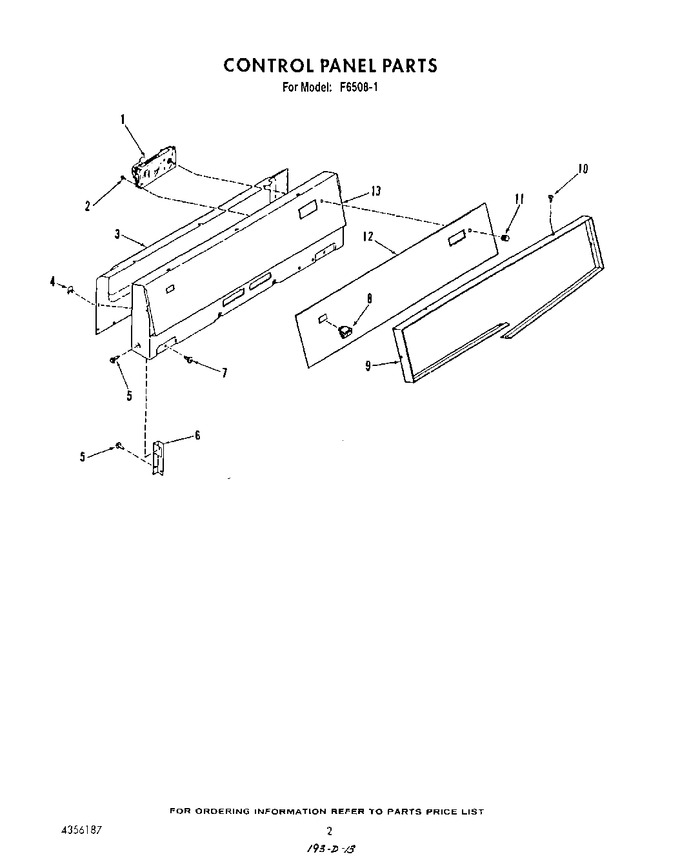

Diagram for F6508W1
