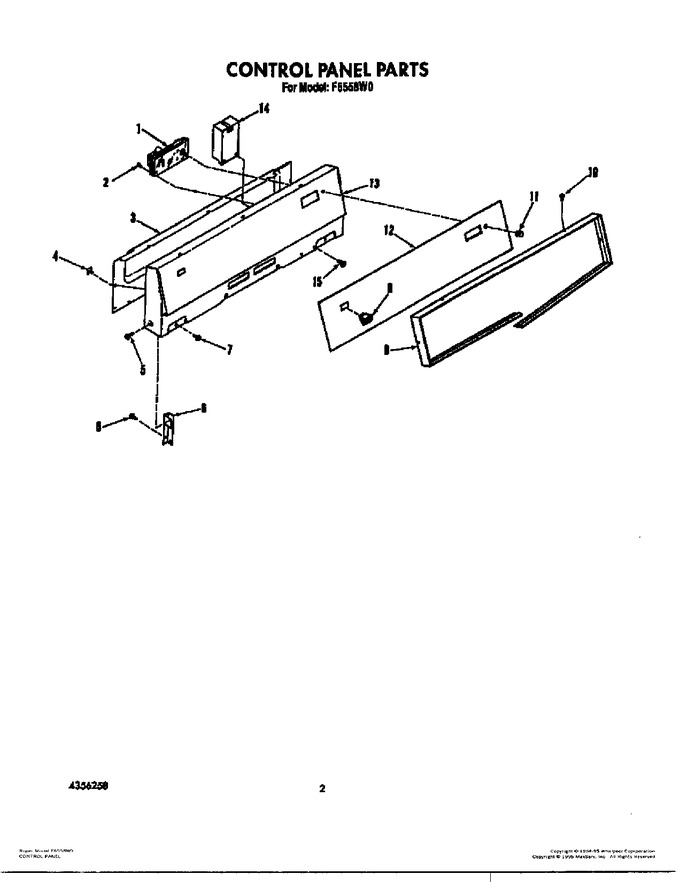

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4337923		Clock		Appelez-nous	-
2	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-
3	4337308		Cover, Wire		Appelez-nous	-
4	4323413		Clip, Trim		Appelez-nous	-
5	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
6	4335176		Support (right)		Appelez-nous	-
6	4335177		Support (left)		Appelez-nous	-
7	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
8	WP4314961		Switch, Oven Light   (Replaces: 4337275)				$ 84.56
9	4337603		Frame, Bezel		Appelez-nous	-
10	4337678		Screw		Appelez-nous	-
11	4337111		Knob, Clock		Appelez-nous	-
12	4337548		Insert-backguard		Appelez-nous	-
13	4337547		Backguard		Appelez-nous	-
14	4334842		Module, Spark		Appelez-nous	-
15	4356258		Repair Parts List		Appelez-nous	-
15	4336143		Screw, No.13-16 X 1/2		Appelez-nous	-
15	4348091		Installation Guide		Appelez-nous	-
15	4348340		Use & Care Guide		Appelez-nous	-
