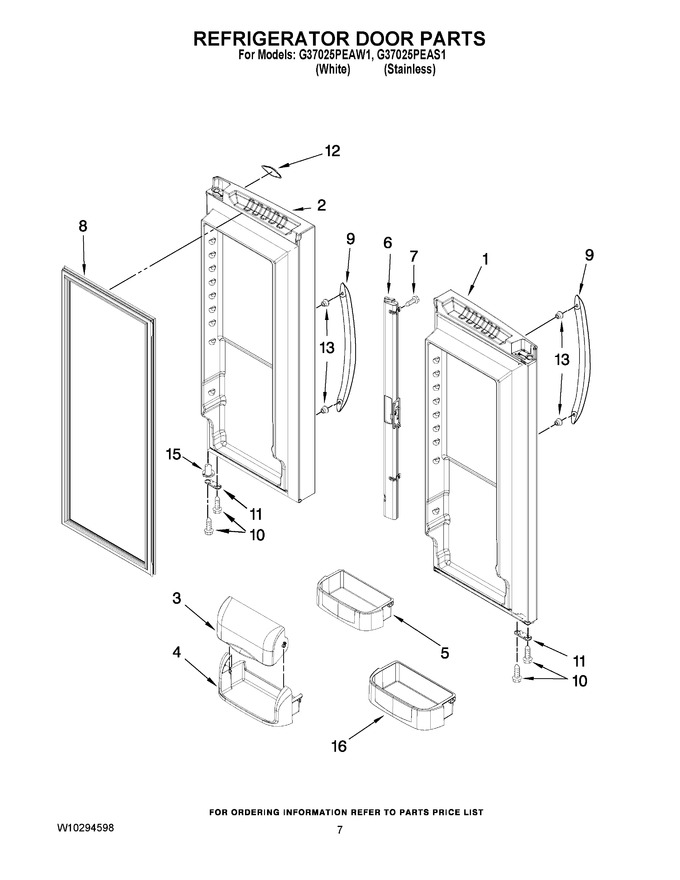

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732427WQ		Door, Left (white)		Appelez-nous	-
1	13024032SQ		Door, Left (stainless)		Appelez-nous	-
2	13024017WQ		Door, Right (white)		Appelez-nous	-
2	13024031SQ		Door, Right (stainless)				$ 439.53
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10324005		Bin, Shelf (3) (medium)   (Replaces: 12557214)				$ 77.75
6	12722811BKV		Mullion, Door (black)		Appelez-nous	-
6	12722811WKV		Mullion, Door (white)		Appelez-nous	-
7	W11311945		Screw   (Replaces: 12990204)				$ 14.72
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)			Immediately	$ 228.91
9	12850919		Handle, Door (stainless-euro)				$ 37.02
9	WPW10179168		Handle, Door (white-right)   (Replaces: W10179168)				$ 171.41
9	W10179171		Handle, Door (white-left )				$ 77.64
10	WP98165		Screw   (Replaces: 12990504)				$ 8.57
11	12968202W		Stop, Door (white)				$ 69.29
11	W11708403		Stop, Door (black )   (Replaces: 12968202B)			Immediately	$ 14.75
12	66981-5		Nameplate		Appelez-nous	-
13	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.91
15	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
15	WP67003638		Closure, Door (white)   (Replaces: 12028505W)			Immediately	$ 8.15
16	WPW10289494		Bin, Shelf (2) (gallon)   (Replaces: 12699004)				$ 87.58
