SELECT A DIAGRAM

02 - Cook Top

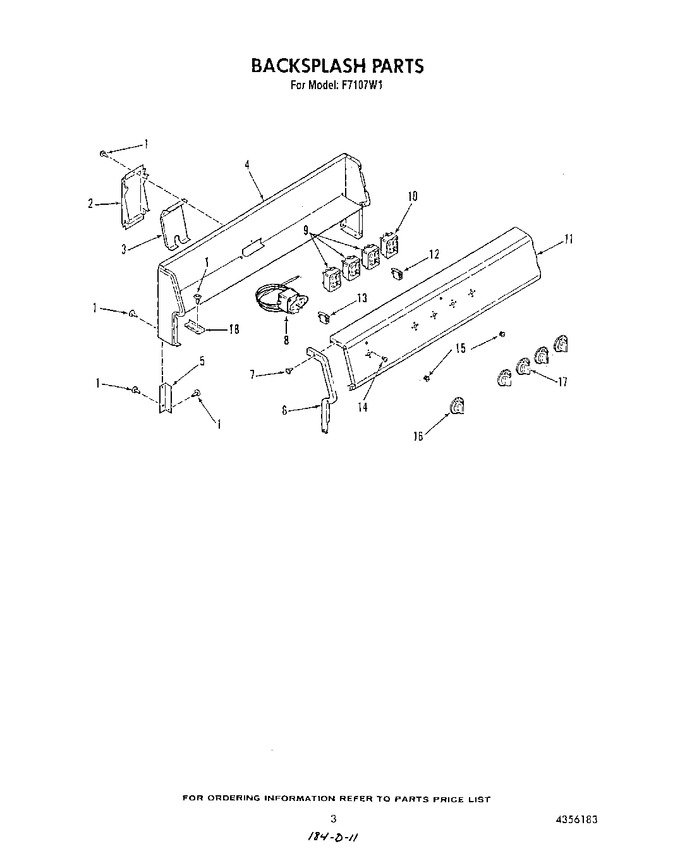

03 - Backsplash , Lit/optional


04 - Oven


05 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4337189		Raceway, Wire		Appelez-nous	-
3	4337190		Cover, Raceway		Appelez-nous	-
4	4337147		Backguard		Appelez-nous	-
5	4337431		Support, Backguard		Appelez-nous	-
6	4337426		End Cap (left)		Appelez-nous	-
6	4337425		End Cap (right)		Appelez-nous	-
7	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
8	4337360		Thermostat				$ 172.56
9	W10900107		Switch, Infinite- Lt. Fr., Lt. Rear Rt. Rear   (Replaces: 4342723)			Immediately	$ 51.87
10	W10900107		Switch, Infinite Rt. Front   (Replaces: 4342724)			Immediately	$ 51.87
11	4337517		Panel, Control (white)		Appelez-nous	-
11	4337518		Panel, Control (almond)		Appelez-nous	-
12	4336633		Light, Indicator		Appelez-nous	-
13	4336634		Light, Indicator		Appelez-nous	-
14	4323479		Screw No.8-32 X 3/16		Appelez-nous	-
15	WP9750343		Lens, Ind. Light (2 Req)   (Replaces: 4336632)			Immediately	$ 5.40
16	4337276		Knob, Thermostat		Appelez-nous	-
17	4338029		Knob, Infinite (4)		Appelez-nous	-
18	4337625		Cleat (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
