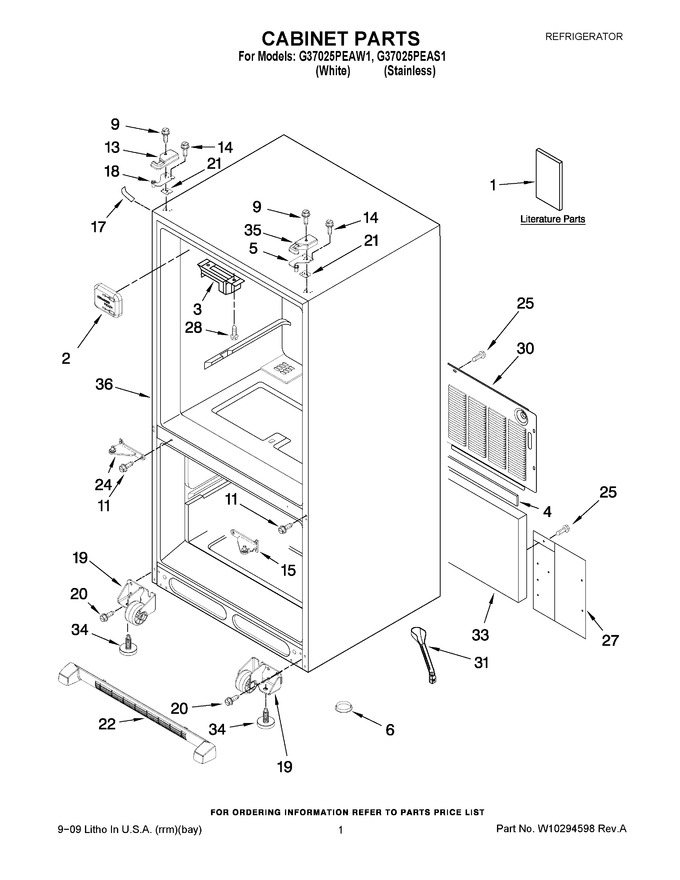

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10239600		Tech Sheet		Appelez-nous	-
1	12828189SP		Owners Manual		Appelez-nous	-
2	WP67001098		Cover-fill Tube   (Replaces: 12477501)				$ 8.03
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
4	B5759655		Gasket				$ 12.41
5	WP12566606ED		Hinge, Top Right   (Replaces: 12566606ED)			Immediately	$ 44.89
6	A3076901		Plug-button				$ 5.70
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.02
13	14268411BSP		Cover, Left Hinge (black)		Appelez-nous	-
13	14268410WSP		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918164		Hinge, Center (rt) Black   (Replaces: 13000008ED)				$ 86.64
15	13000002WD		Hinge, Center (rt) (white)				$ 153.32
17	67003485		Cover, Corner (black )   (Replaces: 12587703B)			Immediately	$ 21.09
17	12587703W		Cover, Corner White				$ 21.81
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566607ED)				$ 86.75
19	W11820444		Roller Assy. (left)   (Replaces: W10275850)			Immediately	$ 35.57
19	W11820445		Roller Assy. (right)   (Replaces: W10275849)			Immediately	$ 35.57
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 7.69
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534153		Grille, Toe (black)   (Replaces: W10244561)				$ 147.21
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 146.34
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
24	W10918164		Hinge, Center (lt) Black)   (Replaces: 13000007ED)				$ 86.64
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 6.95
27	W11684617		Cover, Water Valve   (Replaces: W10217701)				$ 20.34
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 7.61
30	W10212541		Cover, Unit		Appelez-nous	-
31	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
33	12820505		Insulation, Sound				$ 71.70
34	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.85
35	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
35	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
