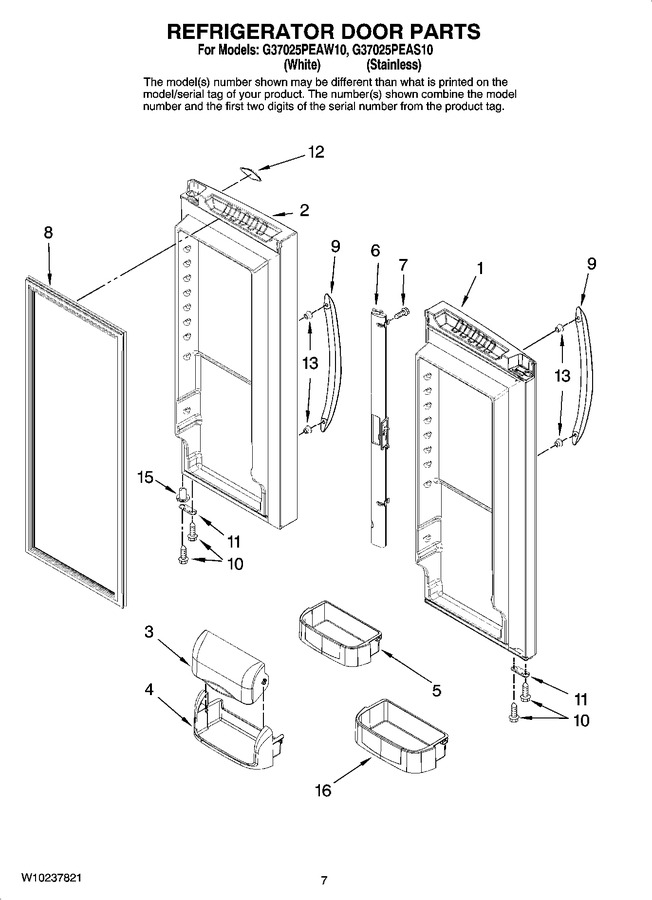

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12732427WQ		Door, Left (white)		Appelez-nous	-
1	13024032SQ		Door, Left (stainless)		Appelez-nous	-
2	67007053		Door, Right (white)		Appelez-nous	-
2	W10185587		Door, Right (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WPW10324005		Bin, Shelf (3) (medium)   (Replaces: 67003766)				$ 77.75
6	W10198907		Mullion, Door (white)		Appelez-nous	-
6	W10198908		Mullion, Door (black)		Appelez-nous	-
7	W11311945		Screw   (Replaces: 67006786)				$ 14.72
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)			Immediately	$ 228.91
9	WP12850910		Handle, Door (stainless)   (Replaces: 12850910)				$ 289.68
9	W10119666		Handle, Door (white)				$ 104.36
10	WP98165		Screw   (Replaces: 67006287)				$ 8.57
11	12968202W		Stop, Door (white)				$ 69.29
11	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.75
12	66981-5		Nameplate		Appelez-nous	-
13	WP12992902		Mount, Handle   (Replaces: 12992902)				$ 11.91
15	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
16	WPW10289494		Bin, Shelf (2) (gallon)   (Replaces: 67005054)				$ 87.58
