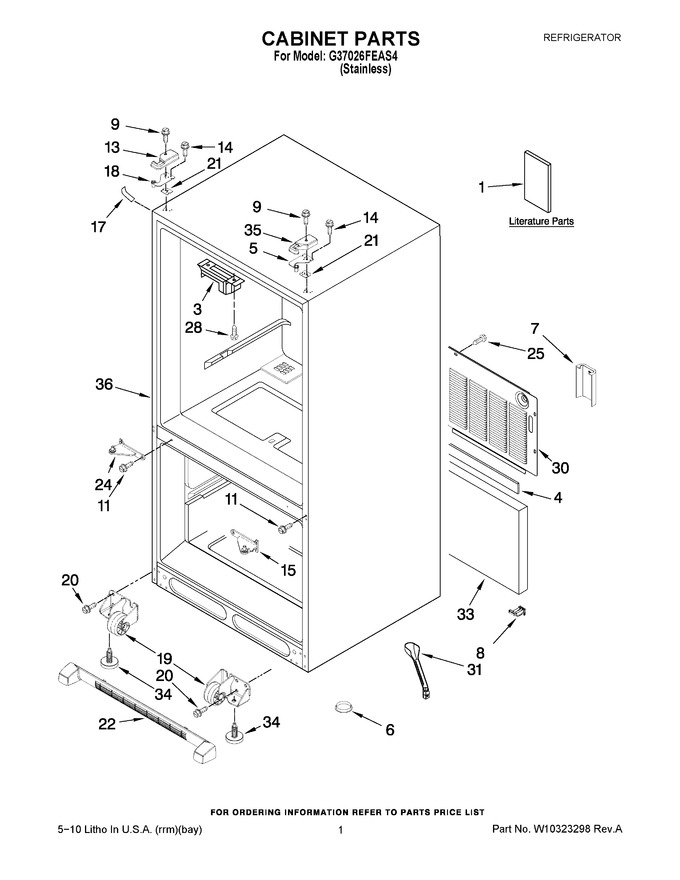

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10308620 | Tech Sheet |
|
- | |||||
| 1 | 12828189SP | Owners Manual |
|
- | |||||
| 3 | WP67003405 | Block, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | WP12566606ED | Hinge, Top Right (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 6 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 7 | W10208592 | Guard, Water Valve |
|
- | |||||
| 8 | W10216614 | Sweep, Water Valve |
|
$ 18.51 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 11 | W11573362 | Screw (6) (Replaces: 12992201) |
|
$ 14.72 | |||||
| 13 | 12684201BSP | Cover, Left Hinge (black) |
|
- | |||||
| 14 | WP489349 | Screw (6) (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918164 | Hinge, Center (rt) Black (Replaces: 13000008ED) |
|
$ 91.53 | |||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | WP12566607ED | Hinge, Top Left (Replaces: 12566607ED) |
|
$ 91.09 | |||||
| 19 | W11820445 | Roller Assy. (right) (Replaces: W10275849) |
|
Immediately | $ 37.35 | ||||
| 19 | W11820444 | Roller Assy. (left) (Replaces: W10275850) |
|
Immediately | $ 37.35 | ||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | 12579702 | Shim, Hinge |
|
- | |||||
| 22 | WPW10534153 | Grille, Toe (black) (Replaces: W10244561) |
|
$ 154.57 | |||||
| 24 | W10918164 | Hinge, Center (lt) Black) (Replaces: 13000007ED) |
|
$ 91.53 | |||||
| 25 | 67006425 | Screw (10) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 28 | WP7101P126-60 | Screw (2) (Replaces: 12990303) |
|
Immediately | $ 8.36 | ||||
| 30 | W10212541 | . |
|
- | |||||
| 31 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 33 | 12820505 | Insulation, Sound |
|
$ 71.70 | |||||
| 34 | WPW10141622 | Foot Brake (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 35 | 12684202B | Cover, Right Hinge (black) |
|
- | |||||
| 36 | N/P | Cabinet (not A Servicable Part) |
|
- |
