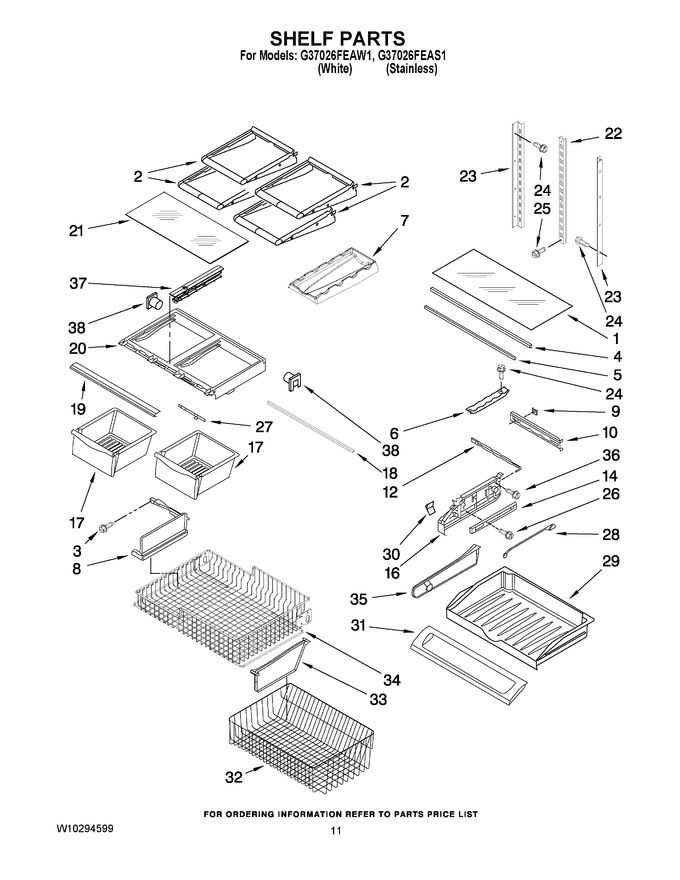

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67006704 | Glass, Pantry (Replaces: 12204824) |
|
$ 212.77 | |||||
| 2 | 12654610 | Shelf, Glide Out |
|
- | |||||
| 3 | 12990601 | Screw |
|
- | |||||
| 4 | W11812285 | Extr, Glass Support (2) (Replaces: 12655902SP) |
|
$ 53.33 | |||||
| 5 | WP12227305WD | Brace, Pantry (2) (Replaces: 12227305WD) |
|
$ 108.36 | |||||
| 6 | WP67001719 | Track-pantry (Replaces: 12531901) |
|
Immediately | $ 8.99 | ||||
| 7 | 67001656 | Trivet-wine (Replaces: 12525101) |
|
$ 72.49 | |||||
| 8 | 12693802 | Divider, Upper Basket |
|
- | |||||
| 9 | 67002329 | Gasket, Pantry (Replaces: 12656901) |
|
$ 22.09 | |||||
| 10 | 12656202 | Housing, Control |
|
$ 148.84 | |||||
| 12 | WP67003793 | Slide, Temperature (Replaces: 12655402) |
|
Immediately | $ 78.49 | ||||
| 14 | WPW10235370 | Glide, Drawer(2) (Replaces: 13058101V) |
|
Immediately | $ 199.80 | ||||
| 16 | W10874836 | Endcap, Pantry (right) (Replaces: 12656019) |
|
Immediately | $ 38.43 | ||||
| 16 | W10874836 | Endcap, Pantry (left) (Replaces: 12656106) |
|
Immediately | $ 38.43 | ||||
| 17 | WP67004515 | Pan, Crisper (2) (Replaces: 12804601) |
|
Immediately | $ 176.72 | ||||
| 18 | WP12642303WD | Brace, Crisper (Replaces: 12642303WD) |
|
$ 112.26 | |||||
| 19 | W10231344 | Trim, Crisper |
|
$ 58.15 | |||||
| 20 | WP67003854 | Frame, Crisper (Replaces: 12796301SP) |
|
Immediately | $ 227.55 | ||||
| 21 | W11033333 | Glass, Crisper Cover (Replaces: 12204830) |
|
$ 227.27 | |||||
| 22 | W10273463 | Ladder, Center |
|
$ 29.61 | |||||
| 23 | W10251971 | Ladder, Side |
|
$ 59.47 | |||||
| 24 | 67006425 | Screw (6) (Replaces: 12990513) |
|
Immediately | $ 7.30 | ||||
| 25 | W10709795 | Screw (2) (Replaces: 12990515) |
|
$ 13.79 | |||||
| 26 | WP67006415 | Screw (4) (Replaces: 12990512) |
|
$ 8.38 | |||||
| 27 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 8.20 | ||||
| 28 | WP67003795 | Rod, Temperature Control (Replaces: 12655304) |
|
$ 8.45 | |||||
| 29 | WP67003531 | Drawer, Pantry (Replaces: 12731302) |
|
$ 162.82 | |||||
| 30 | W11498983 | Knob, Temperature Control (Replaces: 12655204V) |
|
$ 30.64 | |||||
| 31 | W10827015 | Door, Pantry Drawer (Replaces: 12656816) |
|
Immediately | $ 175.81 | ||||
| 32 | WPW10503184 | Basket, Freezer (lower) (Replaces: 13016003) |
|
$ 250.08 | |||||
| 33 | 12659608 | Divider, Lower Basket |
|
- | |||||
| 34 | 12896403 | Basket, Freezer (upper) |
|
- | |||||
| 35 | WP67002759 | Divider, Pantry Drawer (Replaces: 12731901) |
|
Immediately | $ 61.25 | ||||
| 36 | WP98165 | Screw (4) (Replaces: 12990504) |
|
$ 8.57 | |||||
| 37 | WPW10326469 | Rail-crisper-centr (Replaces: 12796401) |
|
Immediately | $ 33.37 | ||||
| 38 | WP13062602 | Support-crisper (Replaces: 13062602) |
|
$ 84.87 |
