02 - Back Guard


03 - Main Top


04 - Top Burner


05 - Door Lock


06 - Oven Body


07 - Broiler And Oven Burner


08 - Oven Door


09 - Wiring Harness And Components , Gri

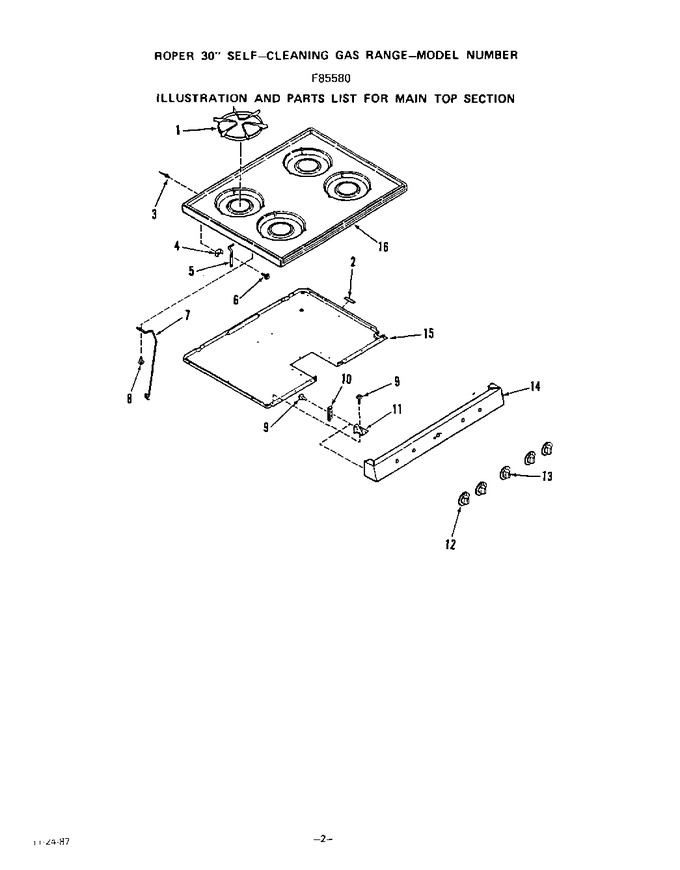

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	330242		Top Burner Grate (4 Req)		Appelez-nous	-
2	335760		Spacer		Appelez-nous	-
3	338735		Rivet		Appelez-nous	-
4	335975		Hinge Bracket		Appelez-nous	-
5	320922		Left		Appelez-nous	-
5	320921		Right		Appelez-nous	-
6	321162		Screw 10-32 X 3/4``		Appelez-nous	-
7	332284		Support Rod		Appelez-nous	-
8	337857		Screw		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	335977		Cleat		Appelez-nous	-
11	333352		Left		Appelez-nous	-
11	333351		Right		Appelez-nous	-
12	338449		Gas Valve Knob		Appelez-nous	-
13	334094		Thermostat Knob		Appelez-nous	-
14	335757		Manifold Panel		Appelez-nous	-
15	333547		Burner Box Bottom		Appelez-nous	-
16	332324		Almond		Appelez-nous	-
16	332318		White		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
