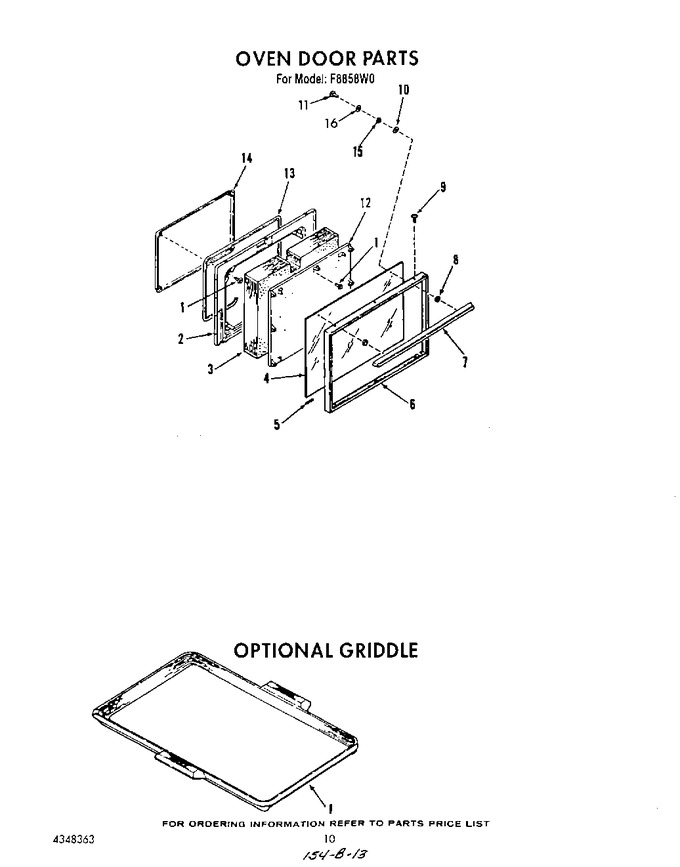

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
1	4326773		Griddle, Set-on		Appelez-nous	-
2	4336608		Lining, Inner		Appelez-nous	-
3	4354952		Insulation		Appelez-nous	-
4	4336722		Glass, Outer		Appelez-nous	-
5	4324217		Cushion		Appelez-nous	-
6	4336719		Frame		Appelez-nous	-
7	4337344		Handle		Appelez-nous	-
8	4323997		Spacer, Handle		Appelez-nous	-
9	4336631		Screw		Appelez-nous	-
10	4336868		Washer, Fiber		Appelez-nous	-
11	WP999367		Screw, No.10-32 X 3/4   (Replaces: 4328242)				$ 7.70
12	4334786		Retainer, Insulation		Appelez-nous	-
13	4342564		Door Gasket		Appelez-nous	-
14	4337956		Plug, Inner Door		Appelez-nous	-
15	4336869		Spacer, Glass		Appelez-nous	-
16	4348363		Repair Parts List		Appelez-nous	-
16	WP285432		14``   (Replaces: 4325037)				$ 7.34
16	4325036		3/16``		Appelez-nous	-
16	4325033		Flag Terminal Faston Terminal		Appelez-nous	-
16	4338350		Relay		Appelez-nous	-
16	4337487		Backguard		Appelez-nous	-
16	4323694		Washer		Appelez-nous	-
16	4348360		Owner`s Manual		Appelez-nous	-
16	4348093		Installation Guide		Appelez-nous	-
