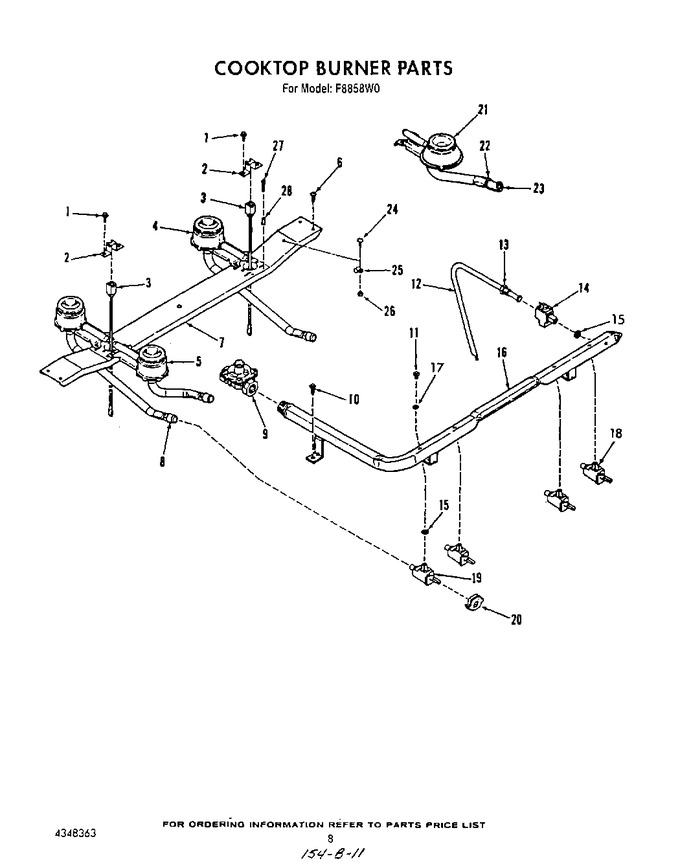

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP489128		Screw No.8-32x3/8   (Replaces: 4323625)				$ 10.26
2	4331307		Bracket, Ignitor		Appelez-nous	-
3	4354925		Electrode (left)		Appelez-nous	-
3	4337231		Electrode (right)		Appelez-nous	-
4	4336922		Rear Burner, Lt/rt. (inc`s No.8)		Appelez-nous	-
5	4336921		Front Burner (left) Inc`s No.8		Appelez-nous	-
6	4332521		Screw No.10-32x1/2		Appelez-nous	-
7	4337013		Support, Burner		Appelez-nous	-
8	4335197		Air Shutter		Appelez-nous	-
9	4334271		Regulator-pressure		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4331097		Screw (for 19)		Appelez-nous	-
12	4324632		3/8`` Tubing		Appelez-nous	-
13	4324278		Nut, Inverted 3/8		Appelez-nous	-
14	4335080		Valve, Shut Off		Appelez-nous	-
15	4331665		Seal, (for No.14 & 19)		Appelez-nous	-
16	4337088		Manifold Pipe		Appelez-nous	-
17	4331164		Seal (for No.11)		Appelez-nous	-
18	4337484		Gas Valve, Right Front (inc`s No.11)		Appelez-nous	-
19	4336715		Gas Valve, Rr, Lf, Lr (inc`s No.11)		Appelez-nous	-
20	4330739		Switch, Gas Valve				$ 57.26
21	4337333		Burner, Rf (inc`s No.22, 23)		Appelez-nous	-
22	4328513		Screw, Adjustment		Appelez-nous	-
23	4328512		Shutter, Air		Appelez-nous	-
24	4342637		Screw, No.8-32 X 3/8		Appelez-nous	-
25	4337581		Clip		Appelez-nous	-
26	WP488130		Nut No.8-32   (Replaces: 4325189)				$ 6.59
27	4335220		Screw No.6-32x7/8		Appelez-nous	-
28	4337565		Eyelet		Appelez-nous	-
