SELECT A DIAGRAM

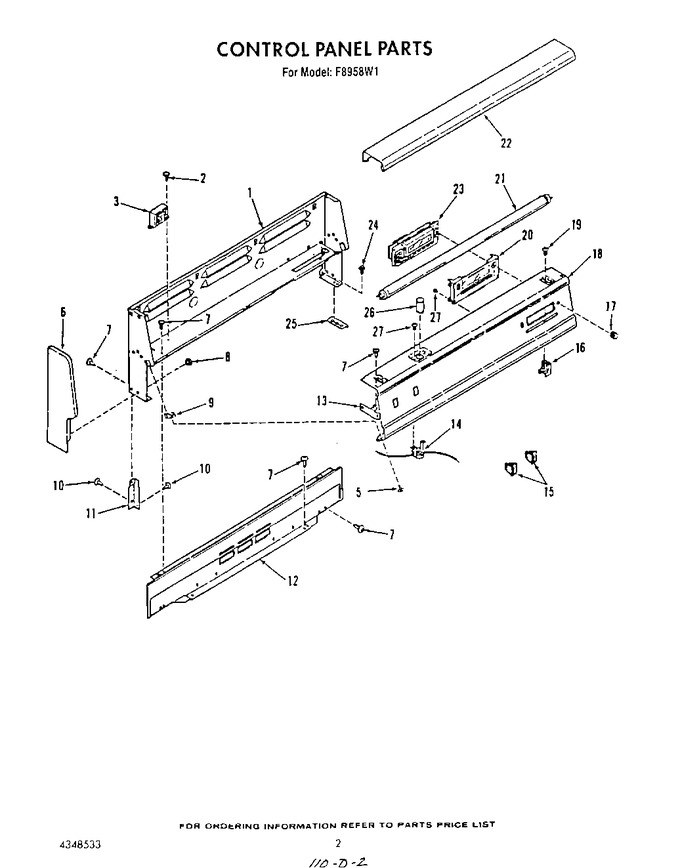

02 - Control Panel


03 - Section


04 - Cooktop Burner


05 - Door Lock


06 - Oven


07 - Broiler And Oven Burner


08 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4338271		Backguard		Appelez-nous	-
2	4336048		Screw, No.6-20 X 3/8		Appelez-nous	-
3	4323673		Ballast		Appelez-nous	-
5	4337623		Screw		Appelez-nous	-
6	4337048		End Cap (left)		Appelez-nous	-
6	4337047		End Cap (right)		Appelez-nous	-
7	WP308685		Screw, No.10 X1/2   (Replaces: 4335117)			Immediately	$ 7.08
8	WP308499		Nut, Pal   (Replaces: 4337577)				$ 6.57
9	4338226		Clip, Backguard		Appelez-nous	-
10	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
11	4337180		Support, Backguard (right)		Appelez-nous	-
11	4337181		Support, Backguard (left)		Appelez-nous	-
12	4337852		Backguard Panel		Appelez-nous	-
13	4337555		Bracket, Backguard		Appelez-nous	-
14	4337372		Starter Base		Appelez-nous	-
15	WP4314961		Switch   (Replaces: 4337275)				$ 84.56
16	4337139		Holder, Lamp		Appelez-nous	-
17	4337368		Knob, Clock		Appelez-nous	-
18	4337496		Control Panel		Appelez-nous	-
19	WP486754		Screw, No.6-32 X 3/8   (Replaces: 4323581)				$ 7.21
20	4337361		Lens, Clock		Appelez-nous	-
21	WP95292		Lamp, Fluorescent   (Replaces: 4337142)			Immediately	$ 121.45
22	4337141		Canopy Panel		Appelez-nous	-
23	4338408		Clock		Appelez-nous	-
24	W10850756		Screw, No.10-32 X 7/16   (Replaces: 4323777)				$ 7.38
25	4337625		Cleat		Appelez-nous	-
26	4337125		Lamp Starter		Appelez-nous	-
27	4323476		Screw, No.6-32 X 5/16		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
