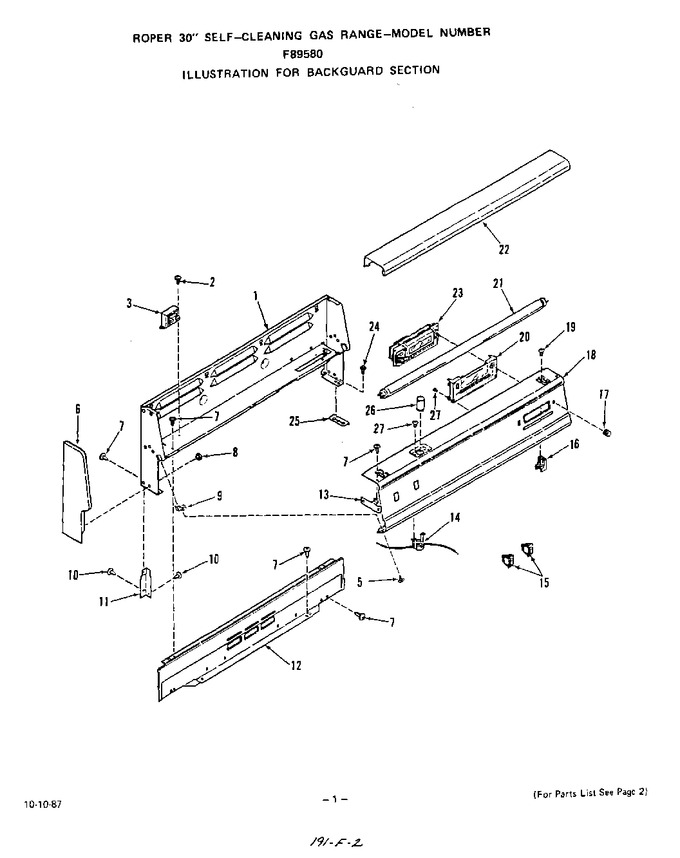

SELECT A DIAGRAM

02 - Backguard , Lit/optional


03 - Main Top


04 - Body


05 - Top Burner


06 - Oven Door


07 - Broiler And Oven Burner


08 - Power Lock


09 - Wire Harnesses And Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	338150		Backguard Body		Appelez-nous	-
2	329382		Screw 6-20x3/8``		Appelez-nous	-
3	98186		Ballast		Appelez-nous	-
5	335967		Screw		Appelez-nous	-
6	333761		End Cap (left)		Appelez-nous	-
6	333760		End Cap (right)		Appelez-nous	-
7	326974		Screw 10abx1/2``		Appelez-nous	-
8	335776		Pal Nut		Appelez-nous	-
9	337975		Backguard Clip		Appelez-nous	-
10	327320		Screw 10-16x7/16``		Appelez-nous	-
11	334337		Backguard Support (right)		Appelez-nous	-
11	334338		Backguard Support (left)		Appelez-nous	-
12	336660		Backguard Front Panel		Appelez-nous	-
13	335667		Backguard Bracket		Appelez-nous	-
14	334924		Starter Base		Appelez-nous	-
15	334649		Switch		Appelez-nous	-
16	334173		Lamp Holder		Appelez-nous	-
17	334914		Clock Knob		Appelez-nous	-
18	335418		Control Panel		Appelez-nous	-
19	89022		Screw 6-32x3/8``		Appelez-nous	-
20	334898		Clock Lens		Appelez-nous	-
21	334193		Fluorescent Lamp		Appelez-nous	-
22	334176		Canopy Panel		Appelez-nous	-
23	338692		Clock		Appelez-nous	-
24	102429		Screw 10 - 32 X 7/16``		Appelez-nous	-
25	335977		Cleat		Appelez-nous	-
26	334104		Lamp Starter		Appelez-nous	-
27	78153		Screw 6-32x5/16``		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
