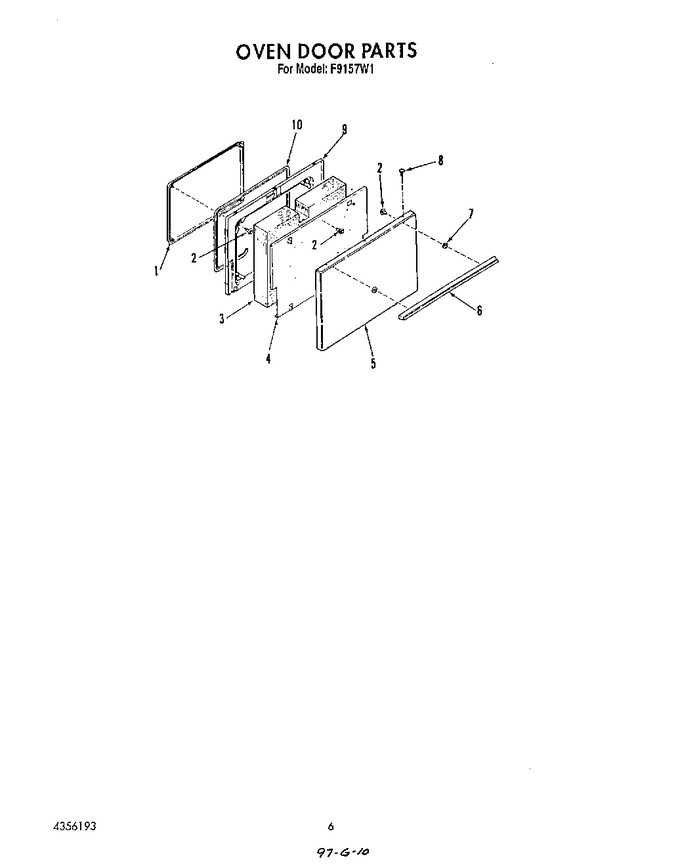

05 - Oven Door
06 - Door Lock
07 - Wire Harness , Lit/optional Griddle
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4337956 | Plug, Lining |
|
- | |||||
| 2 | WP681414 | Screw, No.10-16 X 7/16 (Replaces: 4335248) |
|
Immediately | $ 7.62 | ||||
| 3 | 4354952 | Insulation |
|
- | |||||
| 4 | 4335004 | Retainer, Insulation |
|
- | |||||
| 5 | 4336988 | Panel, Outer Door (almond) |
|
- | |||||
| 5 | 4336987 | Panel, Outer Door (white) |
|
- | |||||
| 6 | 4337344 | Handle |
|
- | |||||
| 7 | 4323997 | Spacer |
|
- | |||||
| 8 | 4332521 | Screw No.10-32x1/2 |
|
- | |||||
| 9 | 4336608 | Lining |
|
- | |||||
| 10 | 4342564 | Seal, Door |
|
- |
