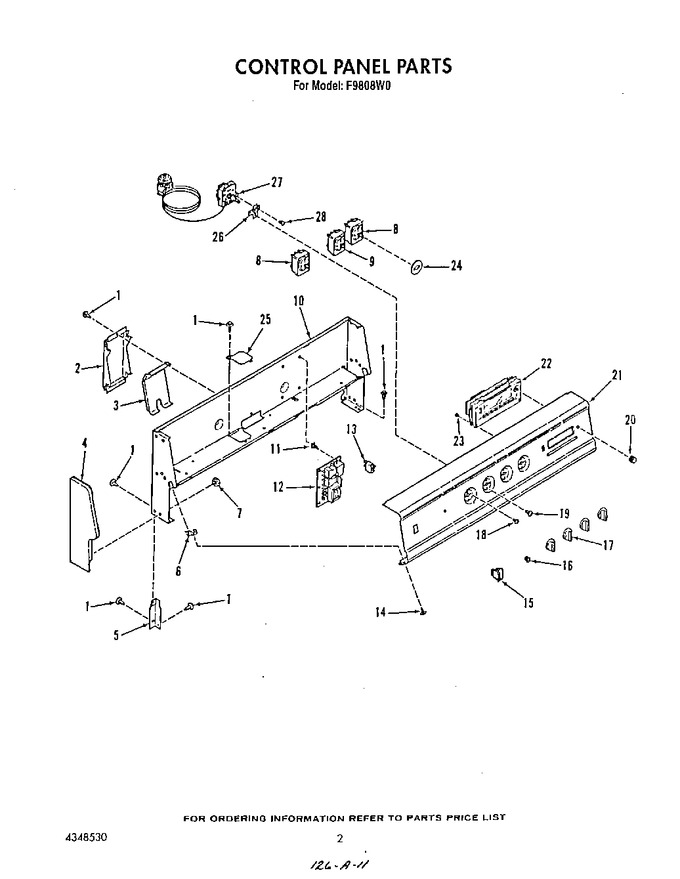

02 - Control Panel


03 - Cooktop


04 - Door Lock


05 - Oven


06 - Oven Door


07 - Wire Harness , Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP681414		Screw, No.10-16 X 7/16   (Replaces: 4335248)			Immediately	$ 7.62
2	4337189		Raceway		Appelez-nous	-
3	4337190		Cover, Raceway		Appelez-nous	-
4	4337135		End Cap (left)		Appelez-nous	-
4	4337134		End Cap (right)		Appelez-nous	-
5	4337180		Support, Backguard (right)		Appelez-nous	-
5	4337181		Support, Backguard (left)		Appelez-nous	-
6	4338226		Clip, Backguard		Appelez-nous	-
7	WP308499		Nut, Pal   (Replaces: 4337577)				$ 6.57
8	W10900107		Infinite Switch, Lt Front/rt Rear   (Replaces: 4337674)			Immediately	$ 51.87
9	W10900107		Infinite Switch, Rt Front   (Replaces: 4337675)			Immediately	$ 51.87
10	4338273		Backguard		Appelez-nous	-
11	4337387		Spacer, Pc Board		Appelez-nous	-
12	4338118		Relay Circuit Board		Appelez-nous	-
13	4336633		Light, Indicator		Appelez-nous	-
14	4337797		Screw		Appelez-nous	-
15	WP4314961		Switch, Oven Light   (Replaces: 4337275)				$ 84.56
16	WP9750343		Lens, Light   (Replaces: 4336632)			Immediately	$ 5.40
17	4337246		Knob, Infinite		Appelez-nous	-
18	4350281		Screw, No.8-32 X 1/4		Appelez-nous	-
19	4338532		Screw		Appelez-nous	-
20	4338513		Knob, Clock/oven		Appelez-nous	-
21	4338520		Panel, Control		Appelez-nous	-
22	4338643CP		Clock/oven Control With Lens   (Replaces: 4338368)		Appelez-nous	-
23	4323476		Screw No.8-32x3/16		Appelez-nous	-
24	4338452		Spacer, Infinite Control		Appelez-nous	-
25	4337516		Cover Plate		Appelez-nous	-
26	4338459		Bracket, Thermostat		Appelez-nous	-
27	4337327		Thermostat, Hob Element		Appelez-nous	-
28	4338593		Screw		Appelez-nous	-
	4338590		Xlens, Clock/oven Control		Appelez-nous	-
