05 - Oven
06 - Oven Door

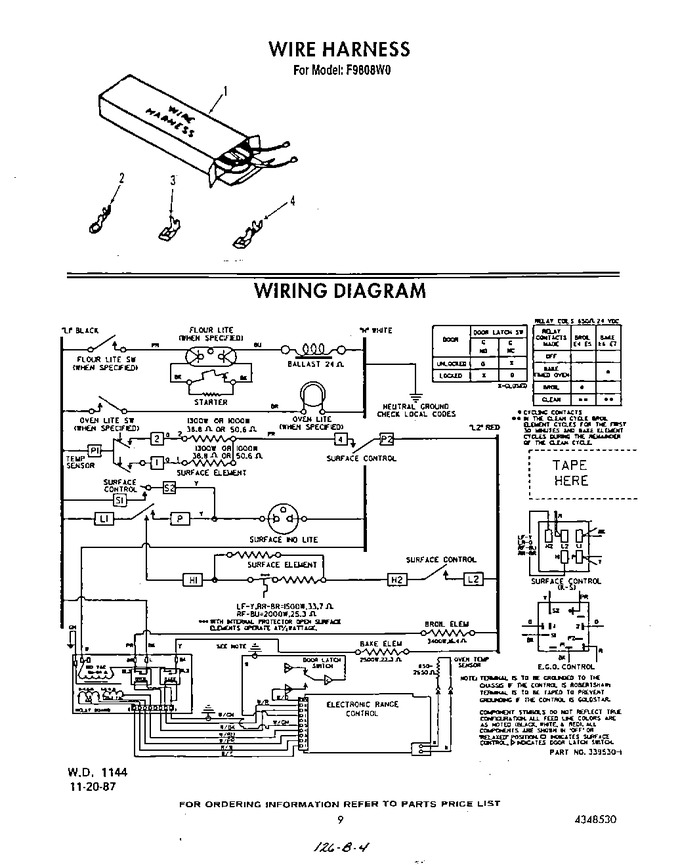

07 - Wire Harness , Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4338548 | Wire Harness (main Top-right) |
|
- | |||||
| 1 | 4338571 | Wire Harness (main Top-left) |
|
- | |||||
| 1 | 4338559 | Wire Harness (sensor) |
|
- | |||||
| 1 | 4338561 | Wire Harness (main) |
|
- | |||||
| 1 | 4337786 | Wire Harness (backguard) |
|
- | |||||
| 1 | 4338556 | Wire Harness (clock/oven Control) |
|
- | |||||
| 2 | 4325031 | Eyelet Terminal |
|
- | |||||
| 3 | 4325035 | Flag Terminal |
|
- | |||||
| 4 | 4325036 | Faston Terminal (3/16``) |
|
- | |||||
| 4 | WP285432 | Faston Terminal, (1/4``) (Replaces: 4325037) |
|
