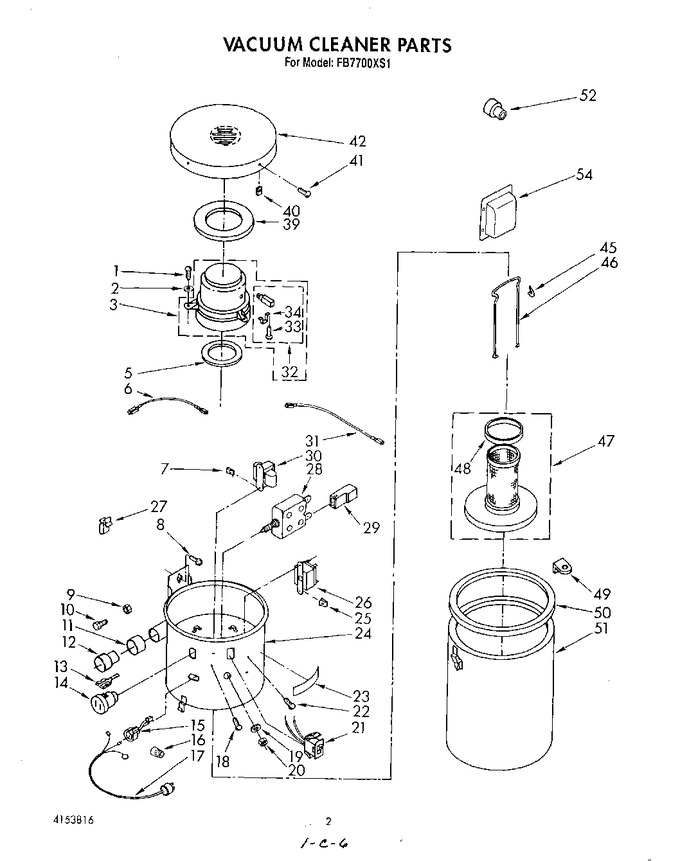

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	680213		Screw, 10-12 X 3/4 (3)		Appelez-nous	-
2	595385		Washer, No.10 (3)		Appelez-nous	-
3	732090		Motor		Appelez-nous	-
5	701425		Seal, Motor (bottom)		Appelez-nous	-
6	732195		Lead, Wire (4)		Appelez-nous	-
7	00689407		Nut, Speed (2)   (Replaces: 681634)			Immediately	$ 213.57
8	681637		Screw, Lag 1/4 X 1-3/4 (2)		Appelez-nous	-
9	WP486255		Nut, Hex 8-32   (Replaces: 680697)				$ 5.82
10	681036		Screw, 8-32 X 3/8		Appelez-nous	-
11	732259		Bushing		Appelez-nous	-
12	4152877		Coupling, Reducer		Appelez-nous	-
13	WP285432		Receptacle (2)   (Replaces: 4153176)				$ 7.34
14	732182		Terminal		Appelez-nous	-
15	681276		Strain Relief		Appelez-nous	-
16	596219		Connector, Closed End		Appelez-nous	-
17	4151070		Cord, Power		Appelez-nous	-
18	WP488787		Screw, 8-18 X 3/8 (2)   (Replaces: 681632)				$ 10.13
19	680690		Washer 7/16		Appelez-nous	-
20	680027		Nut, Switch (2)		Appelez-nous	-
21	732162		Switch, Rocker		Appelez-nous	-
22	681631		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
23	4147081		Nameplate		Appelez-nous	-
24	732247		Cylinder Assembly		Appelez-nous	-
25	681633		Nut, Speed (2)		Appelez-nous	-
26	4153095		Relay, Motor		Appelez-nous	-
27	681557		Clip, Wire		Appelez-nous	-
28	732185		Breaker, Circuit (includes Illus 20)		Appelez-nous	-
29	596610		Housing, Receptacle (2)		Appelez-nous	-
30	55701		Transformer   (Replaces: 4152777)				$ 117.61
31	732196		Lead, Wire (7``)		Appelez-nous	-
32	568980		Kit, Brush		Appelez-nous	-
33	303776		Screw (4)   (Replaces: 569358)		Appelez-nous	-
34	568924		Clamp (2)		Appelez-nous	-
39	732192		Seal, Motor (top)		Appelez-nous	-
40	681642		Nut, Speed (4)		Appelez-nous	-
41	WP488787		Screw, 8-18 X 3/8 (4)   (Replaces: 681632)				$ 10.13
42	732157		Cover		Appelez-nous	-
45	596521		Clip, Retainer (2)		Appelez-nous	-
46	701101		Retainer, Filter		Appelez-nous	-
47	701213		Filter & Disk		Appelez-nous	-
48	701180		Gasket, Filter		Appelez-nous	-
49	DE81-04729A		Clip, Filter Retaining   (Replaces: 701236)				$ 120.91
50	DE81-06503A		Gasket, Dirt Receptacle   (Replaces: 701098)				$ 18.68
51	732165		Receptacle, Dirt		Appelez-nous	-
52	732254		Coupling-reducer		Appelez-nous	-
54	4150107		Muffler, Exhaust		Appelez-nous	-
	LIT4153811		Owner`s Manual		Appelez-nous	-
	LIT4153816		Repair Parts List		Appelez-nous	-
	LIT4149921		Instructions, Installation		Appelez-nous	-
