SELECT A DIAGRAM

01 - Section


02 - Section


03 - Section

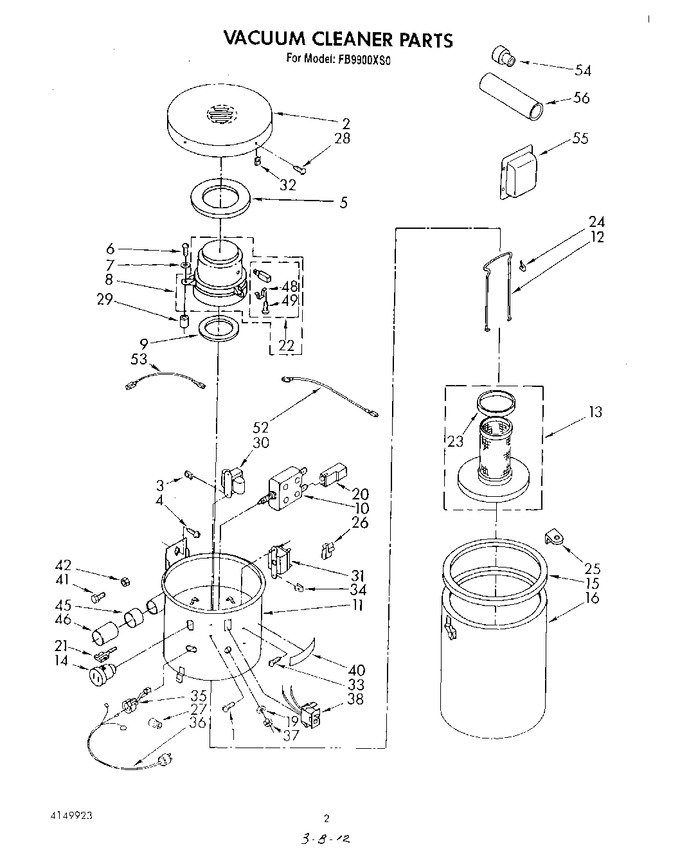

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488787		Screw, 8-18 X 3/8 (2)   (Replaces: 681632)				$ 10.13
2	4147032		Cover		Appelez-nous	-
3	00689407		Nut, Speed (2)   (Replaces: 681634)			Immediately	$ 213.57
4	681637		Screw, Lag 1/4 X 1-3/4 (2)		Appelez-nous	-
5	732191		Seal, Motor (top)		Appelez-nous	-
6	681568		Screw, 10-12 X 1-3/4 (3)		Appelez-nous	-
7	595385		Washer, No.10 (3)		Appelez-nous	-
8	732172		Motor		Appelez-nous	-
9	701425		Seal, Motor (bottom)		Appelez-nous	-
10	732185		Breaker, Circuit (includes Illus. 37)		Appelez-nous	-
11	4147035		Cylinder Assembly		Appelez-nous	-
12	701101		Retainer, Filter		Appelez-nous	-
13	701213		Filter & Disk		Appelez-nous	-
14	732182		Terminal		Appelez-nous	-
15	DE81-06503A		Gasket, Dirt Receptacle   (Replaces: 701098)				$ 18.68
16	4147033		Receptacle, Dirt		Appelez-nous	-
19	680690		Washer 7/16		Appelez-nous	-
20	596610		Housing, Receptacle (2)		Appelez-nous	-
21	WP285432		Receptacle (2)   (Replaces: 596768)				$ 7.34
22	568980		Kit, Brush Replacement		Appelez-nous	-
23	701180		Gasket, Filter		Appelez-nous	-
24	596521		Clip, Retainer (2)		Appelez-nous	-
25	DE81-04729A		Clip, Filter Retaining   (Replaces: 701236)				$ 120.91
26	681557		Clip, Wire		Appelez-nous	-
27	596219		Connector, Closed End		Appelez-nous	-
28	WP488787		Screw, 8-18 X 3/8 (4)   (Replaces: 681632)				$ 10.13
29	732133		Spacer, Motor Bracket (3)		Appelez-nous	-
30	732181		Transformer		Appelez-nous	-
31	732146		Relay, Motor		Appelez-nous	-
32	681642		Nut, Speed (4)		Appelez-nous	-
33	681631		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
34	681633		Nut, Speed (2)		Appelez-nous	-
35	681276		Strain Relief		Appelez-nous	-
36	DE81-04121A		Cord, Power   (Replaces: 701614)				$ 263.19
37	680027		Nut, Switch (2)		Appelez-nous	-
38	732162		Switch, Rocker		Appelez-nous	-
40	4147082		Nameplate		Appelez-nous	-
41	681036		Screw, 8-32 X 3/8		Appelez-nous	-
42	WP486255		Nut, Hex 8-32   (Replaces: 680697)				$ 5.82
45	732259		Bushing		Appelez-nous	-
46	732254		Coupling		Appelez-nous	-
48	568924		Clamp (2)		Appelez-nous	-
49	303776		Screw (4)   (Replaces: 569358)		Appelez-nous	-
52	732196		Lead, Wire (7``)		Appelez-nous	-
53	732195		Lead, Wire (4)		Appelez-nous	-
54	616556		Coupling, Reducer		Appelez-nous	-
55	DE81-04530A		Muffler, Exhaust   (Replaces: 701113)				$ 182.86
56	732301		Tubing-rigid (8``)		Appelez-nous	-
	LIT4149923		Repair Parts List		Appelez-nous	-
	LIT4149921		Instructions, Installation		Appelez-nous	-
	LIT4149922		Owner`s Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
