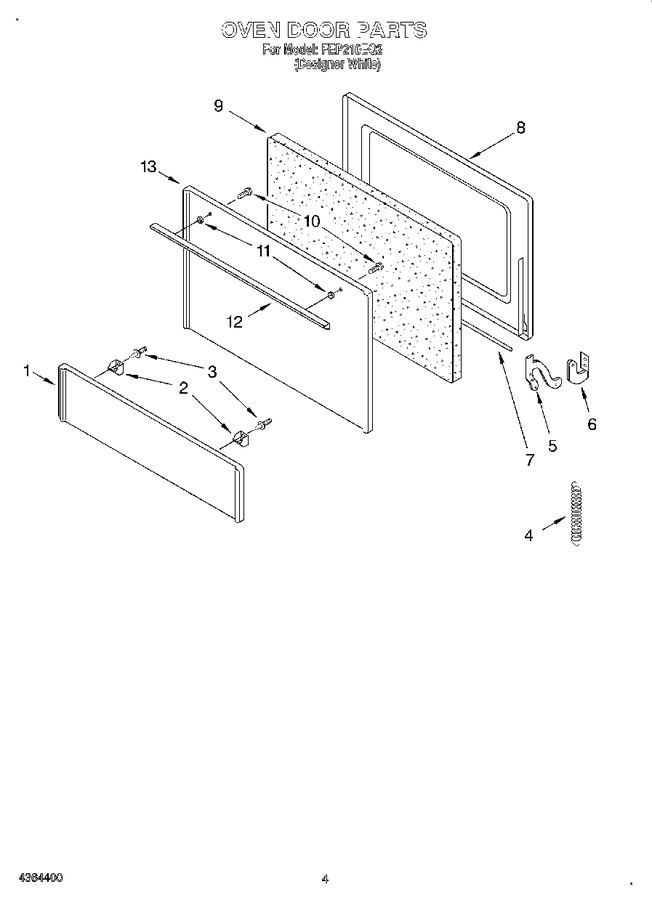

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4364381		Panel, Lower (white)		Appelez-nous	-
2	4364241		Catch, Panel		Appelez-nous	-
3	4364242		Strikepin		Appelez-nous	-
4	4364234		Spring, Oven Door		Appelez-nous	-
5	4364236		Hinge, Oven Door (right Hand)		Appelez-nous	-
5	4364235		Hinge, Oven Door (left Hand)		Appelez-nous	-
6	4364237		Bearing, Hinge (left)		Appelez-nous	-
6	4364238		Bearing, Hinge (right)		Appelez-nous	-
7	4364233		Rod, Oven Door		Appelez-nous	-
8	4364231		Liner, Oven Door		Appelez-nous	-
9	4364230		Insulation, Door		Appelez-nous	-
10	4364057		Screw, Door Handle		Appelez-nous	-
11	4364055		Spacer, Handle		Appelez-nous	-
12	4364394		Handle, Ov. Door		Appelez-nous	-
13	4364254		Panel, Oven Door (screw, 10ab X 1/2)		Appelez-nous	-
13	4364382		Panel, Oven Door (white)		Appelez-nous	-
